Quick Clamp Vacuum Sealing Assembly for 1" dia Tube Furnace with KF25 Vacuum Port - EQ-FL-25QC

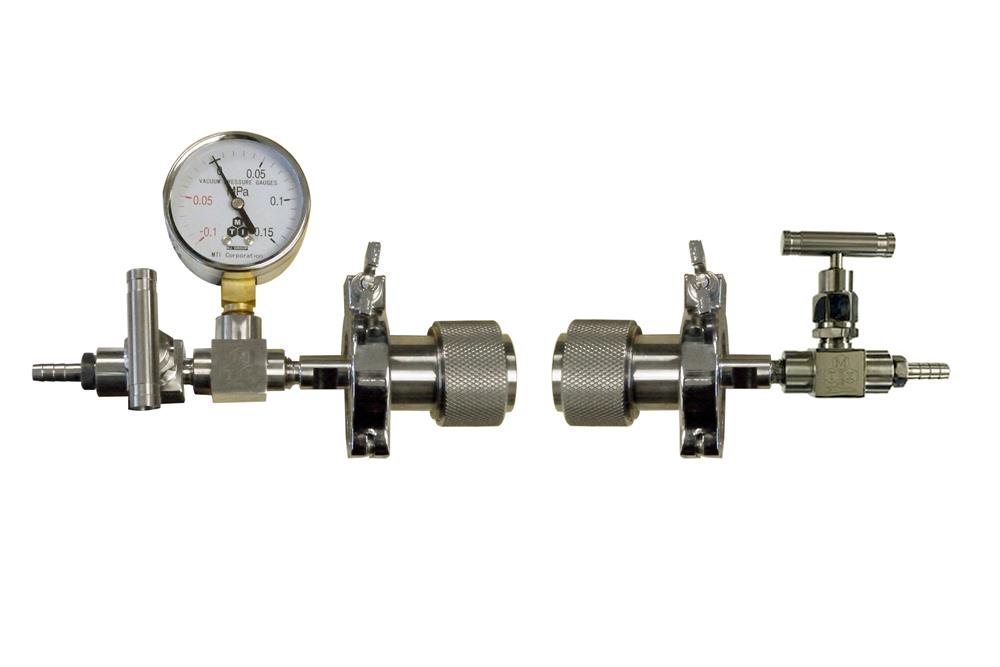

This is a quick clamp vacuum sealing assembly for tube vacuum furnace tube of 1" OD without any welding and gluing. Optional for left or right side flange. SPECIFICATIONS

Features	Stainless steel flange with single high-temperature silicone O-rings. Seal tube by tightening quick clamp set with no welding and glue needed. KF25 port and clamp on the flange allow quick access to the vessel in the furnace. The centering ring at flange cap. 1/4" in diameter vacuum sealing assembly connects with a rubber hose. Ideal for any type of tubing: ceramic, glass, quartz and steel pipe.
Vacuum Level	10E-2 torr by a mechanical pump 10E-5 torr by a small turbopump and  10-6 torr by hi-speed turbopump
Optional Parts	For precision vacuum control up to 10-4 torr, please choose our Digital Vacuum Gauge. (Fig.1) For CVD application, please choose our Anti-corrosive Vacuum Gauge. (Fig.2) We provide various Fitting Ends for separate purchase. (Fig.3) For advanced control over gas flow, please choose our Float-meter. (Fig.4) The product is heavy, please consider our Adjustable Tube Support. (Fig.5)                                                         1                                 2                                    3                               4                               5
Video
Warning	A refractory tube block is required in front of the flange to avoid silicone O-ring melting.  Please consider purchasing our ceramic tube block. This product is heavy, flange support is highly recommended. Please do not over tighten the three hex screws on the flanges to avoid overpressure incidents. The recommended torque is 35~40 inch-lbs. For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gases with our flange assemblies. Please contact us with any concerns.
