1/4" ( I.D. ) Dry Pellet Pressing Die - EQ-Die-06D-B

0.0/5 rating (0 votes)

Description

EQ-Die-06D-B is a 1/4" I.D. pressing die set for making a 6 mm diameter sample pellet. The pressing die is made by high-stretched and highly polished carbon steel to achieve high hardness to meet essential requirements of making ceramic or metal samples.

SPECIFICATIONS:

Model Number EQ-Die-06D-B
Maximum Load 3 metric Ton (at room temperature)
930 MPa
Material HRC 60 - 62 hardened steel
Ra 0.08μm highly polished steel
All pressing dies are made by high-stretched carbon steel to achieve high hardness to meet the essential requirements of making ceramic or metal samples. Otherwise, the pressing surface could probably get scratched.
Dimensions
A: Support Plate Thickness: 8.3mm
B. Sleeve O.D.: ⌀50mm
C. Die Sleeve Height: ⌀40.5mm
D. Sleeve I.D. : ⌀6.35mm (1/4")+ 0.03-0.05mm
E. Top Pressing Rod Body Length: 25.2mm
F. Top Pressing Rod Head Thickness: 5mm
G. Pressing Rod Diameter: ⌀6.35mm (1/4") ± 0.1mm
H. Bottom Pressing Rod Body Length: 17mm
I. Bottom Pressing Rod Head Thickness: 8mm
Weight 1.3 lbs.
Material Requirement
  • 32-75 Microns
  • Do not use this die set for pressing powder with a particle size of 30 microns or smaller; Small particles may slip into the gap of the die parts and damages the sleeve during the compression.
  • Ball mill or ground the powder to the size of 32~75 microns powder before pressing. Please consider using the 3'' Dia. Sieve Set No.200&450 Mesh to separate the 32~75 microns particles from the powder clumps.
  • For pressing sticky metal powders such as Al, Mg, Zn, it is necessary to use dry or alcohol-based tool lubricant to lubricate the die and sleeve set to reduce friction during the compression.

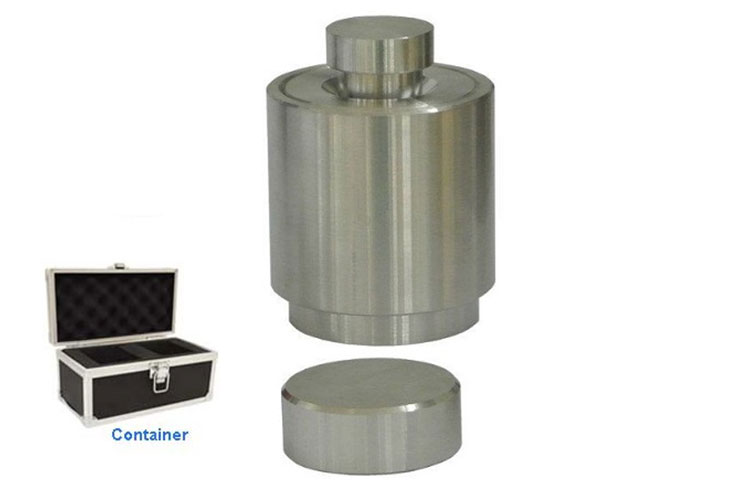

Package Content
  • One pressing die sleeve
  • One top pressing die
  • One bottom pressing die
  • One support plate
  • One die kit container
Safety Precaution

  • To avoid the risk of accidents and damage to the Pressing Die, please read these instructions carefully before installation and before using it for the first time.
  • Read the manual, especially the die installation schematic, before the operation.
  • Do not press flammable, explosive materials.
  • The operator must wear protective goggles.
  • You must have a pellet press equipped with the Protection Cover, please click the pictures to the left to order.
  • To avoid damaging the die core and sleeve, we strongly recommend pressing powder with a professional laboratory hydraulic press to ensure the evenest pressing interface and uniform pressure force.
  • Dies with small diameters (≤10 mm) are more vulnerable to off-center compression, leading to pre-mature top pressing rod failure much below the rated load. Please have top/bottom plates in place and carefully align the die with the centerline of the press machine. Replacement top pressing rods are available here.
Pressing Die Installation Schematic / Instruction


  1. Mixing and grinding chemical powder by agate mortar or Ball Mill
  2. Calcine mixed the powder in a high temp furnace under suitable temperature
  3. Crushing and Grinding calcined powder again by mortar or ball mill
  4. Put calcined powder into the die
  5. Pressing sample by a pressing machine under suitable pressure
  6. You may use CIP to press again to increase density  about 5 - 10%.)
  7. Take out pellet sample from die
  8. Sintering the pellet under suitable temperature
Application Notes
  • Use ethanol to clean the pressing die before and after use every time
  • Use anti-rust oil after the operation and store the kit inside the original box in a dry place to avoid rusting.
  • You may consider using EQ-BNMR for easy mold release. Please click the picture below to order.
Warranty
  • Pressing Dies are consumable products and are not covered by MTI's warranty.
