1" Square Dry Pellet Pressing Die - EQ-Die-25S

EQ-Die-25S is a Complete pressing die set to make a 25.4 mm x 25.4 mm square sample pellet.

SPECIFICATIONS:

Modle	EQ-Die-25S
Height	50 mm
Diameter	62.5mm
Weight	7.0 Lbs

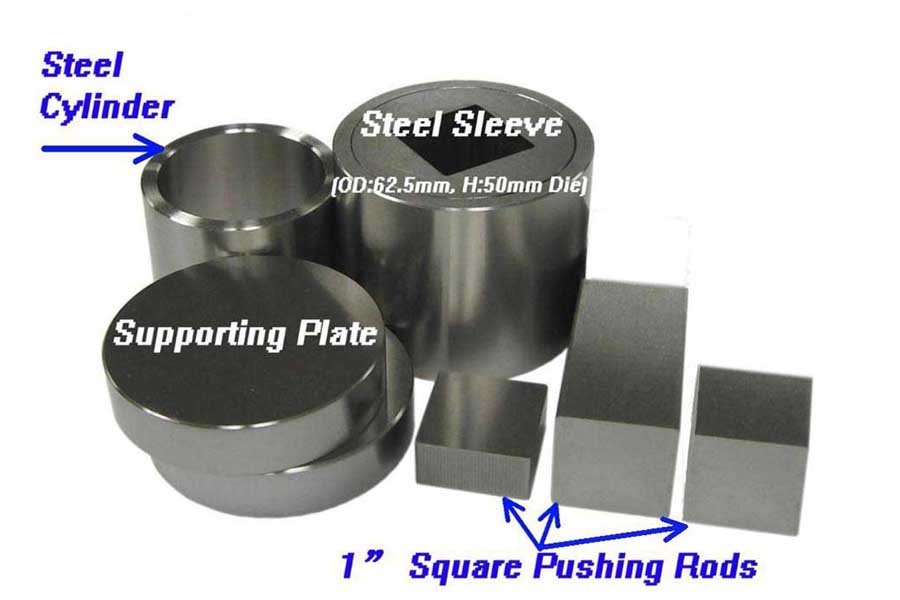

Whole set pressing die includes	One 1.0" × 1.0" (25.4 mm x 25.4 mm) Square core die made of hardened steel and highly polished Hardness HRC 60 - 62. One steel sleeve for core die protection Two pushing rods (They are 12 mm and 50 mm long separately) highly polished and perfectly fitted into the die. Two steel support plates One steel cylinder for retrieving the sample. Max. Load: 30 metric Ton (at room temperature), or 450 MPa equivalent
Pressing die installation schematic
Instruction Video
Attention	The difference between round and square die is that the square pressing core can only be inserted into the die cavity in just one orientation. Once you received the die, please try a different direction until you can fully insert the pressing core. Due to manufacturing process technology, the surface of this square version is a little rougher than the round die. Due to the stress concentration near the corners, the core die may easily break if the pushing rods are subject to off-center compression. This product is NOT covered by warranty.
Cautions	Please must always wear protective goggles during the operation !!! The pressing die is not good for pressing powder with a particle size < 30 microns. Small particles may slip into the gap between the pushing rod and steel sleeve and cause damages to the sleeve during the compression. Ball mill and sieve the powder and apply the 32~75 microns powder to the pressing die to avoid damage Please use alcohol to clean the pressing die every time before use and store it in a dry place with antirust oil after the operation to avoid rusting on the surface, because all pressing dies are made by high-stretched carbon steel for achieving high hardness to meet the essential requirements of making ceramic or metal samples. Otherwise, the pressing surface could probably get scratched. To avoid damaging the die core and sleeve, we strongly recommend you use professional laboratory hydraulic presses which ensure the most even pressing interface and uniform pressure force. For pressing sticky metal powders such as Al, Mg, Zn, it is necessary to use dry or alcohol-based tool lubricant to lubricate the die and sleeve set to reduce friction during the compression.  Do not press flammable, explosive materials.
Application Note	You may consider using EQ-BNMR for easy mold release. Please click the picture to order.
Steps to make sample pellet	Mixing and grinding chemical powder by agate mortar or Ball Mill Calcine mixed the powder in a high temp furnace under suitable temperature Crushing and Grinding calcined powder again by mortar or ball mill Put the calcined powder into the die Pressing sample by a pressing machine under suitable pressure Take out pellet sample from die。 ( You may use CIP to press again to increase density  about 5 - 10%.) Sintering the pellet under suitable temperature Then, a new material sample is formed!
Warranty	Pressing Dies are consumable products and are not covered by MTI's warranty.
