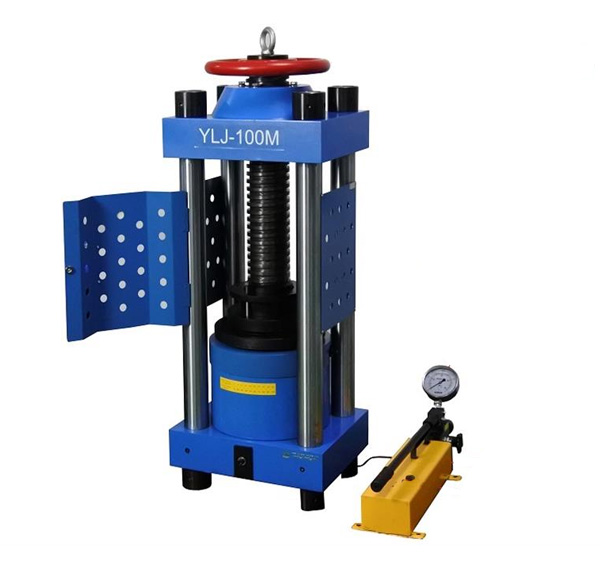

100T Max. Manual Hydraulic Press with Protection Door - YLJ-100M

100T Max. Manual Hydraulic Press with Protection Door - YLJ-100M

0.0/5 rating (0 votes)


YLJ-100M is a manual hydraulic pressing machine up to 100 metric tons for preparing a compound or ceramic samples at low cost


  • Max. 100 Metric Tons ( 980 KN)
  • Separated manual hydraulic pump with pressure gauge for easy maintain
  • Protection door is built-in for safe operation
Bottom Hydraulic Cylinder Travel Distance
  • 0 - 20 mm
  • Range sensing switch to prevent travel distance beyond 20 mm
Top Support Screw Adjustable Height
  • 310 mm
Working Space
  • 250 W x 250 W x 300 H, mm
Net Weight & Dimension
  • Dimension:    440 L x 400 W  x 1540 H, mm
  • Weight:          400 Kg
Shipping Dimensions
  • 48" L x 40" W  x 60" H
Weight of Shipment
  • 1000 lbs
Application Notes
  • Check the Oil Level Regularly. Add AW 46 Hydraulic Oil if the Oil Level is low
  • Do not raise the bottom cylinder (piston) more than its maximum traveling distance (20 mm)
  • Warning: Customers must always wear protective goggles during operation !!!
  • Please shut the oil release valve and oil drain for transportation or long term idle
  • Operating the pressor inside the glove box is not recommended
Optional 32-Position Pressing Die Adapter
  • The press is compatible with the optional 32-position pressing die adapter, which enables making 32 pallets at once for high-throughput operation.
  • The adapter is NOT included in the standard package, please contact MTI to make a separate purchase.
  • Please check out the video for more information.
  • NRTL (UL or CSA) Certification is not required  because no electricity involved
Pellet Press Dies (optional) &CIP die

Operation Video
  • The pressing machine was quality inspected in the USA, lifetime support is provided
  • One year limited standard warranty (Extended warranty is available up to 5 years at an extra cost)
