Description

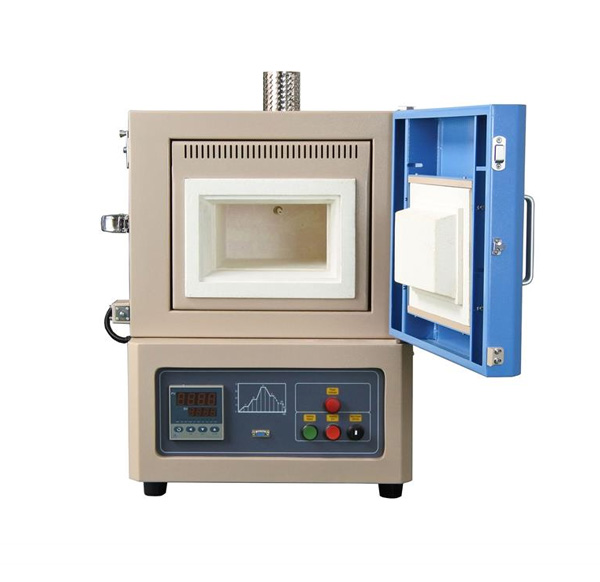

KSL-1000X is an anti-corrosive muffle furnace with the hidden heating coil inside the ceramic chamber, which is designed to calcine some corrosive materials, such as sulfides and chlorides, up to 1,050ºC. The venting port is built on the top of the furnace for exhausting gas.
SPECIFICATIONS:
| Furnace Structure | - Double-layer structure with a cooling fan to keep furnace exteriors safe to touch
- Heavy-duty heating corundum chamber where the heating coil is inserted inside
- One venting port is built on the top of the furnace
- Can processing corrosive material
|
| Heating Chamber | - Material: sintered corundum
- Dimensions: 12" D x 8" W x 5" H
- Heating element: FeCrAl coil inserted inside the chamber
- Single zone with three sides heating: left, right & bottom (Please refer to the pic 2)
- Venting port of alumina on the top of the chamber
-
 Pic. 1 |
Power
 | - 4 kW
- AC 208V-240V single phase, 50/60 Hz
- Note: Power cable is included without a plug. Please install a plug by yourself or click the link below the picture to choose a plug according to your country or your lab requirement
|
Working Temperature | - Max. 1050°C ≤ 2 hours
- 1000°C continuously
- Temperature Accuracy: +/- 1° C
- Heating Rate: ≤ 10°C / min
|
Temperature Controller
 | - FA-YD518P-AG temperature controller is included
- Proportional–integral–derivative control (PID control) and auto-tune function
- 30 segments programmed with ramping, cooling and dwelling steps
- Built-in over-temperature alarm and thermocouple failure alarm
- +/- 1 ºC temperature control accuracy
- Default RS485 PC communication port
- Thermocouple: K Type
|
Temperature controller (optional)
 | - You may upgrade the temperature controller to the Eurotherm 3000 which can provide +/- 0.1ºC accuracy. LabVIEW
- This package includes a Eurotherm 3000 programmer, a communication cable (RS485 - USB) and a software CD
|
| Laptop, software & WiFi Control (Optional) | - Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) .
- Labview Based Temperature Control System (EQ-MTS01) enables the user to edit temperature profile, manage heat-treatment recipe, record and plot data for MTI furnaces.
- A wireless remote control provides up to 300 meters of operating range..
- Note: The software is only compatible with MTI’s Yudian Temperature Controller

|
Overall Dimensions
 | - 750 x 550 x 720mm (L x W x H)
|
Shipping Weight & Dimensions | |
Warranty | - One year limited warranty with lifetime support. (Consumable parts such as sample plates and heating elements are not covered by the warranty, please order the replacement at related products below.)
- ATTENTION: Any damages caused by the use of corrosive and acidic gases are not under the coverage of MTI One Year Limited Warranty.
|
Compliance
 | - CE Certified
- NRTL (UL61010) or CSA certification is available upon request at an extra cost
|
Application Notes | - For preserving the longevity of the furnace life, we recommend the heating rate not to exceed 10°C /minThe cooling rate shall also not exceed 10 °C /min
- Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating
|
