1100°C Max. Muffle Furnace (12x12x12

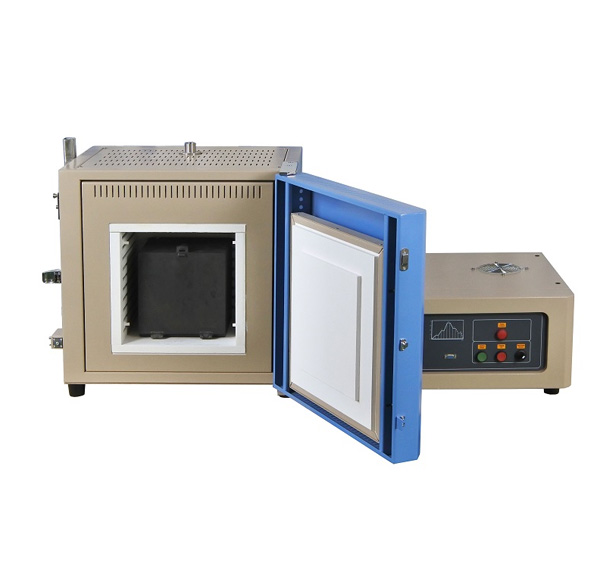

1100°C Max. Muffle Furnace (12x12x12") w/ Alloy Chamber for Debinding - KSL1200X-M-F

0.0/5 rating (0 votes)

Description

KSL1200X-M-F is a muffle furnace with a 310S alloy chamber and a working temperature of 1100°C.  The  9x9x10" refractory alloy chamber has a gas inlet and outlet which can remove bender or glue to prepare porous materials or fill inert gas for sintering oxygen-sensitive materials.   The programmable temperature controller is separated from the furnace for safe operation.

SPECIFICATIONS

Heating Chamber
  • Size: 12" x 12" x 12"  ( 304 x 304 x 304 mm)
  • Capacity:  27 liters
  • Heating element:  Ni-Cr-Al  wire  inserted a high purity fibrous alumina
  • Three sides heating
  • Max. Temperature:   1200 ° C
Refractory Alloy Chamber

  • 310S alloy chamber with hinged type door is placed inside the heating chamber
  • Size:   9"x9"x10" ( 230x230 x 250 mm )
  • Capacity:  ( ~13.2 Liter )
  • 8 mm ID gas inlet tube is put to the back of the furnace
  • 8 mm ID" gas outlet tube is connected to the top of the furnace
  • K type thermal couple is inserted into the inside chamber for temperature control
  • Max. working Temperature:  1000° C
  • Note:
    • This is not an airtight chamber, but it is enough to keep smoking leaking to damage the heating chamber
    • For air-sensitive material, suggest use 5%H2 + 95% Ar to keep the sample from oxidation
Power
  • 208~240V AC, Single phase, 50/60 Hz
  • 12.5KW
  • 60 A Breaker (installed)
  • Note: Power cable included, but without the plug. Please install a plug on your own
Max Operating Temperature
  • 1000° C with refractory alloy chamber inside
  • 1200 ° C without refractory alloy chamber inside
  • Temperature Stability: ±1 °C
  • Suggested heating Rate:  10 ° C/min
Temperature Controller
  • The FA-YD518P-AG temperature controller is included.
  • Proportional–integral–derivative control (PID control) and auto-tune function
  • 30 segments programmed with ramping, cooling, and dwelling steps
  • Built-in over-temperature alarm and thermocouple failure alarm
  • +/- 1 ºC temperature control accuracy
  • Default DB9 PC communication port with PC operation software included
  • Eurotherm temperature controller with +/- 0.1 accuracies is available at the extra cost
Product Dimensions
Net Weight 200 Kg
Warranty
  • One-year limited warranty with lifetime support.
  • ATTENTION: Any damages caused by the use of corrosive and acidic gasses are not under the coverage of MTI One Year Limited Warranty.
Compliance

  • CE Certified
  • NRTL  (UL61010) or CSA certification is available upon request at extra cost.
