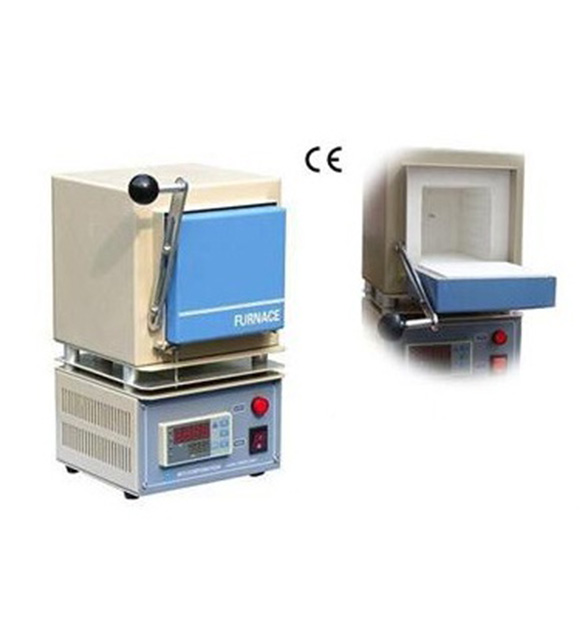

UL Standard 1100°C Compact Muffle Furnace (4x4x4",1.0L) with Programmable Controller -- KSL-1100X-S-UL

0.0/5 rating (0 votes)

Description



KSL-1100X-S-UL is a CE certified & UL Ready compact muffle furnace that offers 4"x4"x4" high purity fibrous alumina chamber, gas inlet and outlet ports and a 30-segment, programmable temperature controller and the furnace is with UL / MET / CSA Certified electric components . It is the ideal muffle furnace for preparing small-sized sample using temperatures up to 1100oC in material research and dental labs with maximum energy saving (500 - 700W only). In addition, the compact furnace can be placed into a glove box to sinter samples in a vacuumed or controlled atmosphere.



SPECIFICATIONS

Furnace Construction

  • High purity fibrous alumina insulation for maximum energy saving - 30% less power consumption than other brands.
  • Door drops down for easy and safe sample loading and unloading (with automatic power off when door is opened).
  • (Optional) Two 8 mm diameter hose barb connectors (gas inlet and outlet) (see pic below) in the furnace back panel are available at extra cost. Check the option box.

Chamber Size

  • Size: 4"x4"x4"  or 100x100x100 mm
  • Capacity: 65 cubic-inch or 1 liter
  • Click on picture to see the chamber size

Power

  • 110V version: 950 W ( power cord is included )
  • 220V version: 1.2KW

Voltage

AC 110V or AC 220V 50/60 Hz

Max. Temperature

1200 °C  (< 1 hour)

Continuous Working Temperature

1100 °C

Max. Heating Rate

30 °C /min

Temperature Controller

  • PID automatic control and auto-tune function.
  • 30 programmable segments for precise control.
  • Built in protection for over-heating and broken thermocouple.
  • Large digital control panel (48 x 96 mm) for easy operation.

Temperature Accuracy

+/- 1 °C

Heating Elements

Fe-Cr-Al Alloy doped by Mo

Thermocouple

K type

Overall Dimensions

  • 200 x 230 x 360 mm
  • Click on picture to enlarge and view details

Net Weight

~ 8Kg

Shipping Dimensions

17"(L) x14"(W) x 18"(H)

Shipping Weight

40 lbs

Warranty

  • One year limited warranty with lifetime support
  • ATTENTION: Any damages caused by the use of corrosive and acidic gases are not under the coverage of MTI One Year Limited Warranty.

Compliance

  • CE Certified
  • All electric components ( >24V) are UL / MET / CSA certified
  • The furnace is ready to pass TUV(UL61010) or CSA certification at extra cost.


Application Notes

  • For preserving the longevity of the furnace components, we recommend the heating rate not to exceed 10 °C /min.
  • Cooling rate shall also not exceed 10 °C /min.
  • Toxic or explosive gases are not recommended for use with this furnace without necessary safety controls and supervision. Please put furnace into fume hood for better safety ( click picture left )
  • Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
  • May put the small furnace into a standard glovebox via air lock chamber and fire sample under inert gas.



Operation Instructions
