Power | - OTF-1200X-S-II (sliding): AC 110-120V Single Phase, 50/60 Hz, 1.5 kW
- OTF-1200X-S (stationary): AC 110-120V Single Phase, 50/60 Hz, 1.2 kW
- Sliding Motor: AC 110-120V Single Phase, 50/60 Hz, 0.2 kW
- Power cables with NEMA 5-15P are included.
- The system working under 208-240 VAC 50/60 Hz is also available upon request.
|
Sliding Furnace (Right)

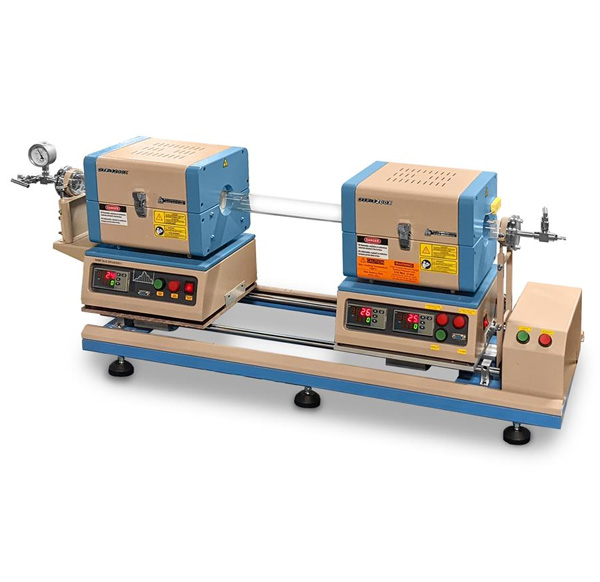

 | - Dual-zone furnace OTF-1200X-S-II
- Sliding distance: 300 mm
- Heating elements: Mo doped Fe-Cr-Al alloys
- Heating zone: 200 + 200 mm
- Constant temperature zone: 70mm (±2°C)
- Max temperature: 1200 °C (<1 hour)
- 1100 °C (continuous)
- 1000°C (under vacuum)
- Max heating rate: 20 °C/min
- K type thermocouple
|
Stationary Furnace (Left)
 | - Stationary single Furnace: OTF-1200X-S
- Heating zones: 200 mm
- Constant Temperature Zone: 60 mm (±1°C)
- Heating elements: Mo doped Fe-Cr-Al alloys
- Max temperature: 1200 °C (<1 hour)
- 1100 °C (continuous)
- 1000°C (under vacuum)
- Max heating rate: 20 °C/min
- K type thermocouple
|
Processing Tube
 | - High purity fused quartz tube
- Size: 50 OD x 44 ID x 1200 L (mm)
- Max Pressure: 0.2 bar (3 psig)
- Max flow rate: 1000 sccm
- Workflow: stationary to sliding.
|
Temperature Controller
  | - The FA-YD518P-AG temperature controller is included.
- Proportional–integral–derivative control (PID control) and auto-tune function
- 30 segments programmed with ramping, cooling and dwelling steps
- Built-in over-temperature alarm and thermocouple failure alarm
- +/- 1 ºC temperature control accuracy
- Default DB9 PC communication port
- Optional PC control and software:
- The furnace may be operated by a PC with free software.
- We recommend you order a computer (laptop) from us to avoid software installation problems. For more information please click here
|
Temperature Controller (optional)
 | - All temperature controllers can be graded to the Eurotherm 3000 Temperature Controller with +/- 0.1°C accuracies.
- This package includes:
- One (1) Eurotherm 32H8 controller for single-zone furnace
- Two (3) Eurotherm 32H8 controllers for dual-zone furnace
- Communication cables (RS485 - USB) and software
|
Vacuum Flanges
 | - Stainless vacuum flanges with a pressure gauge are installed on both ends of the tube.
- Water-cooled flanges are available at an extra cost.
- KF25 port for vacuum pumps.
|
| Programmable Sliding Control | - Double Linear Sliding Rails made of Cr-plated steel
- 24VDC motor with manual and auto modes.
- The automatic programmable sliding function is integrated with the temperature controller.
- Sliding length: 300 mm
|
Vacuum Level | - Limited by pump (pump is not included, click on pictures to order)
- 10E-5 torr can be achieved via molecular pump
- 10E-2 torr can be achieved via a mechanical pump.
|
Optional for upgrade | - 1-9 channel gas mixing and delivery module is optional (Pic.1)
- A cold trap is also available to condense volatile vapor. (Pic. 2)
 Pic. 1  Pic. 2 |
Dimensions | - Dimensions: 1502 mm L × 420 mm W × 700 mm H (Furnace lid open)
- 1502 mm L × 420 mm W × 520 mm H (Furnace lid open)
|
Net Weight | 100 kg |
Shipping Weight | 300 lbs |
Warranty | One-year limited manufacturer's warranty (Consumable parts such as processing tubes, O-rings and heating elements are not covered by the warranty, please order replacements at related products below). |
Compliance | - CE Certified
- NRTL or CSA certification is available at extra cost.
|
Application Notes
Click here to learn the installation of a gas regulator | |
Warning | - Fast sample cooling can be achieved by sliding the heating chamber away. Please wear protective gear such as heat resistant suit & gloves if you intend to do so. DO NOT TOUCH THE TUBE SURFACE WHEN IT IS HOT!
|
Operation Instructions |   |
