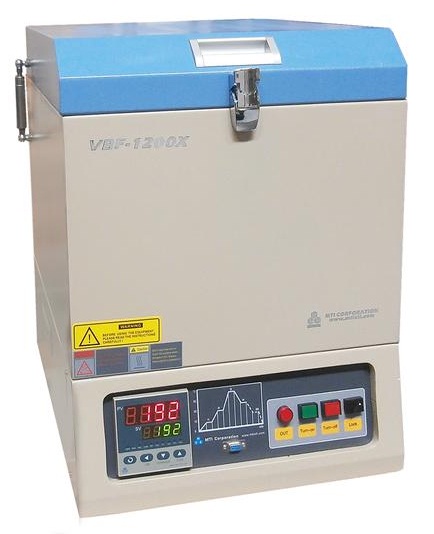

1250°C Vertical Crucible Furnace with 9.5"Dia x 8.6"H ( 9 Liter) Chamber & Programmable Controller - VBF-1200X

0.0/5 rating (0 votes)




Item Number:VBF-1200X



  • Upgrade from CF-1200X The Vertical Crucible Furnace has a large chamber (9.5"d x 8.6"H, 9 liters ) and it is designed for sintering ceramic parts and component in Lab.
  • The crucible furnace has a unique ceramic fiber insulation around , the chamber to provide excellent uniformity and energy efficiency.
  • The heating element is embedded in the insulation for maximum heat transfer to the chamber. Max. temperature can reach 1250°C
  • All accessories are included for immediate use:
    • One pcs refractory disk, which can be put on bottom of furnace to protect furnace liner from wearing out.
    • Three pcs refractory supports, which may be put on top of the disk and bottom of the crucible to adjusting crucible height.

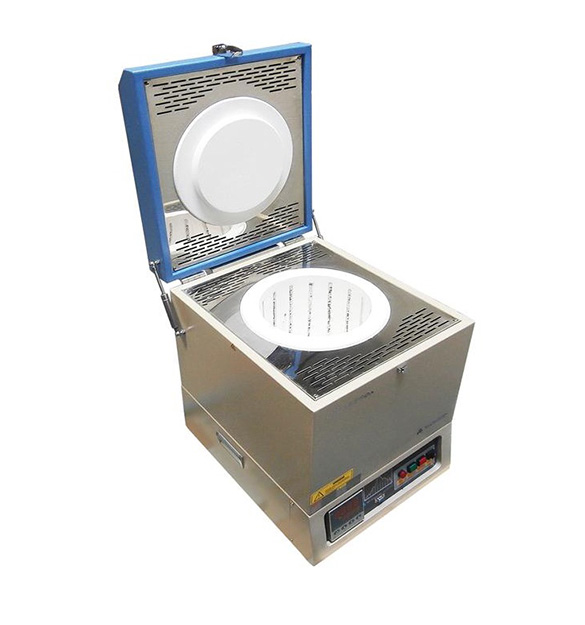

Furnace Structure & Chamber

  • Double Layer steel structure with air cooling
  • High purity fiber alumina insulation ( made in Japan factory) for saving
  • chamber size: Ø9.5" x 8.6"H
  • 9 liter capacity


2200 W Max.


AC 208 ~ 240V Single Phase 50/60Hz

Max. Temperature

  • Max. 1250 °C for short time < 1hour
  • Continuous working temperature: < 1200 °C
at room temperature
at 1000°C

Max. Heating Rate

40 °C /min

Temperature controller

  • PID automatic control and auto-tune function.
  • 30 programmable segments for precise process
  • Built in protection for over-heated and broken Thermal couple.

Temperature Accuracy

+/- 1 °C

Heating Element

1300oC grade Fe-Cr-Al Alloy doped by Mo


510 x 435 x 425mm

Net Weight

30 Kg

Shipping package size

after crating

45" x28" x 35"

Shipping weight

260 Lbs


One year limited warranty (Consumable parts are not covered by the warranty )
Certificate  CE certified
