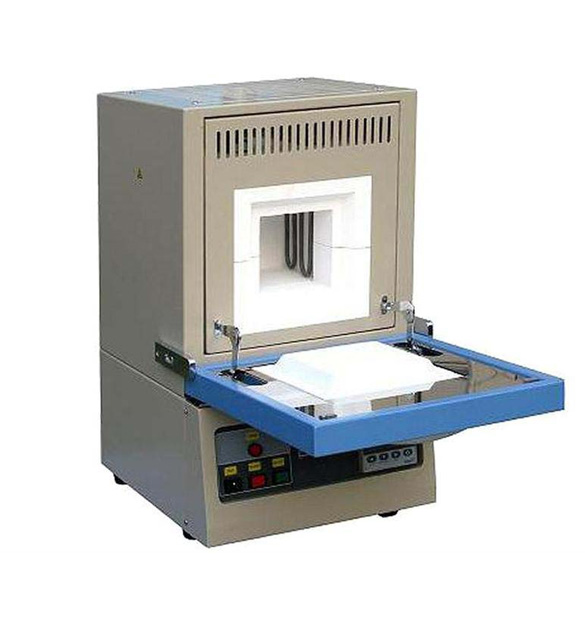

1500C Compact Muffle Furnace (4.7"x4.7"x 4.7",1.7L) with Programmable Controller - KSL-1500X-S

0.0/5 rating (0 votes)

Description

KSL-1500X-S is a CE certified and is ready to pass TUV(UL61010) or CSA certification compact high-temperature muffle furnace with maximum energy saving. It is an ideal tool for annealing and sintering materials in research or dental labs.

SPECIFICATIONS:

Furnace Structure
  • High quality 1700ºC alumina fiber inner insulator and double-layer steel outer layer with air cooling fan to keep case temperature below 55ºC
  • The design of drop-down door is for loading sample at easy.
  • The gas inlet and venting port are installed for using at oxygen or inert gas enriched atmospheres.
Dimensions
  • Chamber: 120 x 120 x 120mm (4.7" x 4.7" x 4.7 "), 1.7 L
  • Overall: 410 D x 380 W x 620 H mm
  •     chamber dimension  Chamber Dimensions        KSL-1500 overall dimension Overall Dimensions
Power
  • AC 208V-240V single phase, 50/60 Hz ( 20A air breaker required)
  • 2.5KW
  • Note: Power cable included, but without the plug. Please install a plug by your own or click the picture  left to choose a plug according to your country or your lab requirement
Standard Working Temperature 1400ºC ( Continuous )
Maximum Working Temperature 1500ºC (< 60 minutes)
Heating Rate 0 ~20°C / min (suggestion  =< 10°C)
Temperature Accuracy +/- 1ºC
Temperature Uniformity +/- 2°C over 80 mm (3") @ 1400°C
Heating Elements SiC (4 pcs U shape)
Thermocouple S type
Temperature Controller
  • FA-YD518P-AG temperature controller is included.
  • Proportional–integral–derivative control (PID control) and auto-tune function
  • 30 segments programmed with ramping, cooling and dwelling steps
  • Built-in over-temperature alarm and thermocouple failure alarm
  • +/- 1 ºC temperature control accuracy
  • Default DB9 PC communication port
  • MET Certified
Temperature controller (optional)
  • MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for the detail information about the MTS02-Y software kit.
  • You may upgrade the temperature controller to the Eurotherm 3504 Temperature Controller which is fully compatible with LabVIEW. This package includes a Eurotherm 3504 programmer, a communication cable (RS485 - USB) and a software CD. Click the pic below to view the full spec of Eurotherm 3504 temperature controller.
Laptop, software & WiFi Control(Optional)
  • Brand new laptop with Microsoft Window 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
  • Labview Based Temperature Control System (EQ-MTS01) enables user to edit temperature profile, manage heat-treatment recipe, record and plot data for MTI furnaces.
  • A wireless remote control provides up to 300 meters operating range.
  • Above features are available upon request at an extra cost (up to $1,000). Please contact us for more information.
  • Note:  The software is only compatible with MTI’s Yudian Temperature Controller
  •
Optional Parts
  • You may order alumina crucible by clicking picture below-right.
  • The furnace can be upgraded to 1700C ( Click pic right to order )


Net Weight

65 kg

Shipping Dimensions

40" x 40" x45"

Shipping Weight

185 lbs

Warranty

  • One-year limited warranty with lifetime support.  (Consumable parts such as sample plates and heating elements are not covered by the warranty, please order the replacement at related products below.)
  • ATTENTION: Any damages caused by the use of corrosive and acidic gasses are not under the coverage of MTI One Year Limited Warranty.

Compliance

  • CE Certified
  • The furnace is ready to pass TUV(UL61010) or CSA certification at extra cost.


Application Notes

Attention Notes

  • For preserving the longevity of the furnace components, we recommend the heating rate not to exceed 10 °C /min. The cooling rate shall also not exceed 10 °C /min.
  • This furnace lacks vacuum sealing, toxic or explosive gasses are not recommended for use with this furnace without necessary safety controls and supervision.
  • Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
  • Performance degradation (i.e. furnace can not reach the maximum temperature of 1500°C or it is drawing a higher than normal working current) can be expected due to the use of aged SiC heating elements. It is necessary to replace all the heating elements if the above symptoms were seen. Please order the replacements from the standard package list in below.
