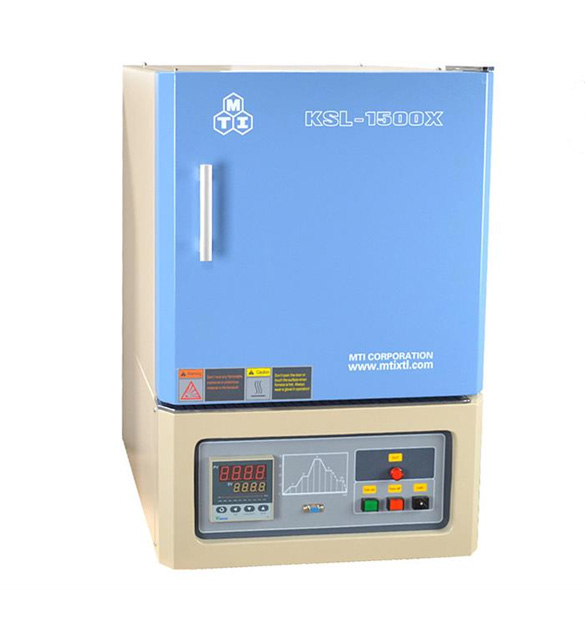

1500C Max. Bench-Top Muffle Furnace (6"x6"x6", 3.6L) with Programmable Controller - KSL-1500X-LD

0.0/5 rating (0 votes)

Description

KSL-1500X-LD is CE Certified bench-top high-temperature muffle furnace. The furnace consists of high-quality alumina fiber insulation and SiC heating elements. It is controlled by high precision SCR (Silicon Controlled Rectifier) and temperature controller with +/-1 °C accuracy and 30 programmable segments up to 1500 °C. It is an ideal tool for materials annealing and sintering in your research laboratory.

SPECIFICATIONS

Furnace Structure

  • Double-layer steel structure with air cooling fan to keep the case's temperature below 60°C
  • High purity alumina fiber insulation for max. energy saving

Inside Chamber Size

150 x 150 x 149mm (6" x 6" x 6"), 3.6L

Standard Working Temperature

1450° C (continuous)

Maximum Working Temperature

1500° C (< 1 hour)

Heating Rate

0 ~20 °C/min ( ≤10°C/min recommended )

Temperature Accuracy

+/- 1° C

Temperature Controller
  • FA-YD518P-AG temperature controller is included.
  • Proportional–integral–derivative control (PID control) and auto-tune function
  • 30 segments programmed with ramping, cooling and dwelling steps
  • Built-in over-temperature alarm and thermocouple failure alarm
  • +/- 1 ºC temperature control accuracy
  • Default DB9 PC communication port
  • MET Certified

Temperature controller (optional)

  • MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for detailed information about the MTS02-Y software kit.
  • You may upgrade the temperature controller to the Eurotherm 3504 Temperature Controller which is fully compatible with LabVIEW. This package includes a Eurotherm 3504 programmer, a communication cable (RS485 - USB), and a software CD. Click the pic below to view the full spec of the Eurotherm 3004 temperature controller.

Laptop, software & WiFi Control(Optional)

  • Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial)
  • Labview Based Temperature Control System (EQ-MTS01) enables users to edit temperature profiles, manage heat-treatment recipes, record, and plot data for MTI furnaces.
  • A wireless remote control provides up to 300 meters of operating range.
  • The above features are available upon request at an extra cost (up to $1,000). Please contact us for more information.
  • Note:   The software is only compatible with MTI’s Yudian Temperature Controller
  •

Thermocouple

S-type

Heating Element

SiC

Power

AC 208V-240V single phase, 50/60 Hz (32A air breaker required)

Note: Plug is not included. 30A plug is recommended (NEMA L6-30P).

Max. Power

4 KW

Outside Size

500 x 480 x 700 mm

Net Weight

70 Kg (155 lbs)

Optional

Warranty

  • One year limited warranty with lifetime support.  (Consumable parts such as sample plates and heating elements are not covered by the warranty, please order the replacement at related products below.)
  • ATTENTION: Any damages caused by the use of corrosive and acidic gases are not under the coverage of MTI One Year Limited Warranty.
Compliance
  • CE Certified
  • NRTL (UL61010) or CSA certification is available at extra cost.
Shipping Dimensions 45" x 40"x 48"
Shipping Weight   380 lbs
Application Notes Please click here to learn how to DIY gas purging system.
Attention Notes Performance degradation (i.e. furnace can not reach the maximum temperature of 1500°C or it is drawing a higher than normal working current) can be expected due to the use of aged SiC heating elements. It is necessary to replace all the heating elements if the above symptoms were seen.
Operational Manual
