1500C Max. Muffle Furnace with 10x10x12" Chamber & Double Doors & Slide Rails - KSL-1500X-DD

0.0/5 rating (0 votes)

Description



Main Specifications

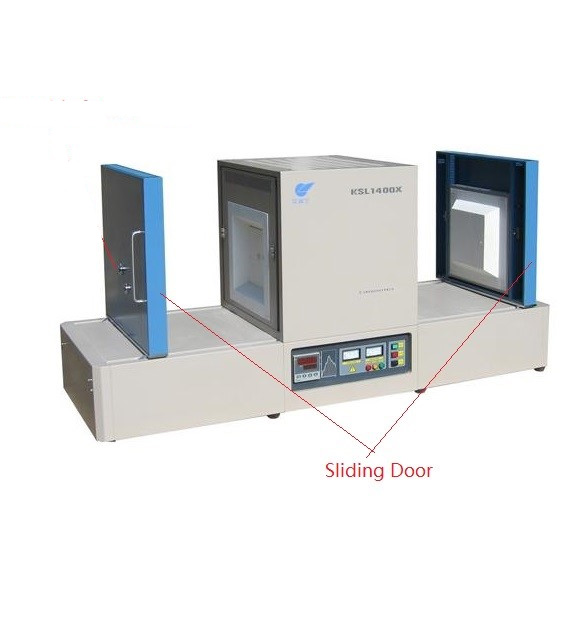

KSL-1500X-D is a double door muffle furnace with sliding rails on each door, which makes load simple easy and cooling charmer fast to increase productivity.   The furnace consists of high-quality alumina fiber brick and SiC heating elements with a chamber of 250x250x300mm and can be used up to 1400 oC.  It is designed for fuel cell module tests.



Inside Chamber Size

250x250x300mm

Standard Working Temperature

1400 oC ( continuous )

Maximum Working Temperature

1500 oC ( < 1 hrs)

Temperature Control

30 segments programmable and auto control

The Control unit box is separated from the furnace

Heating Rate

0~10 oC / min     (suggestion at  =< 5 oC)

  Thermal Coouple

  S type

Temperature Accuracy

+/- 1 oC

Heating Element

SiC

Working Voltage

AC 220V +/- 10%,   Single Phase, 50/60 Hz

Max. Power

5 KW

Dimension

1800x600x840mm

Net Weight

120 Kg

Limited Warranty

One-year manufacturer limited warranty and free replace all defective parts (not including spare parts).

  Compliance

 CE certified
NRTL certification is available upon request

   Shipping Weight

  300 lbs
