1500C SiC Electric Heating Element (413 mm L) - EQ-OTF1500-HEL-413

0.0/5 rating (0 votes)


1500C SiC Electric Heating Elements are used in applications ranging in temperature from below 600oC up to 1500 oC in both air and controlled atmospheres, although the type of atmosphere used will determine the maximum recommended element temperature


  • Materials: SiC
  • Working temperature: max. 1500 oC
  • Continous working temperature 1400oC
  • Replace heating element for MTI OTF-1500X series tube furnace. (16 heating elements are needed for OTF-1500X-UL or OTF-1500X-II-UL, 24 heating elements for OTF-1500X-III-UL)

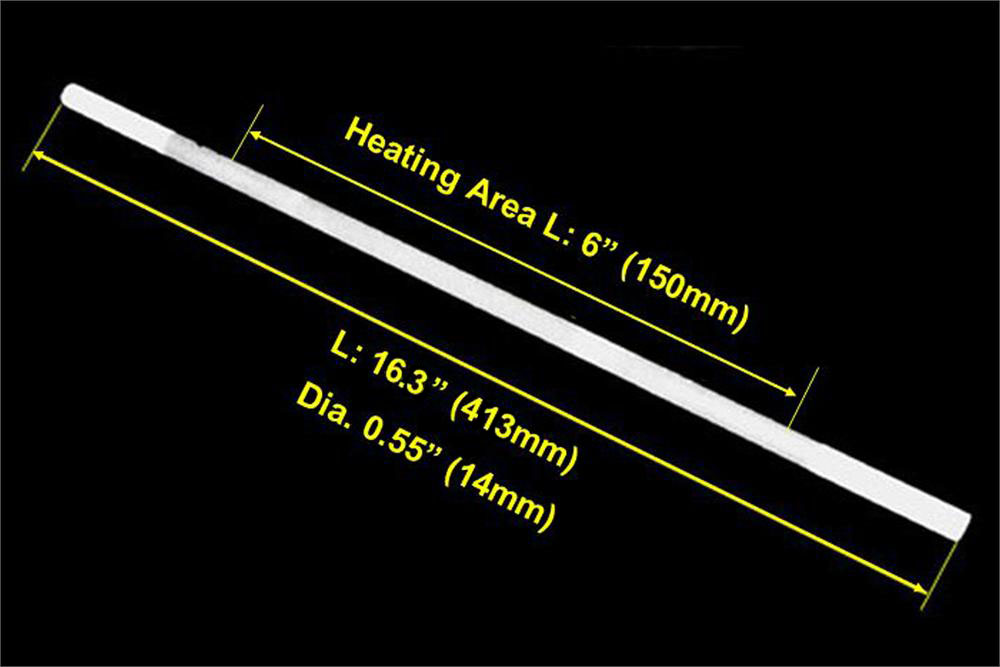

  • Dimension:
    0.55"(14mm) Dia.
    6" (150mm)  heating zone
    16.3” (413 mm)  overall length
  •" style="font: 9pt Tahoma, Geneva, sans-serif; color: rgb(0, 51, 204); text-decoration: none;">Installation of the SiC rods
  • Notice: For SIC heating element, it is a consumable part, and usually the high performance service life is one year.
