1500C SiC Electric Heating Elements (520mm L) - EQ-OTF1500-HEL-520

0.0/5 rating (0 votes)

Description

1500C SiC Electric Heating Elements are used in applications ranging in temperature from below 600oC up to 1500 oC in both air and controlled atmospheres, although the type of atmosphere used will determine the maximum recommended element temperatur

Specifications:

  • Materials: SiC
  • Working temperature: max. 1500 oC
  • Continous working temperature 1550 oC
  • Replace heating elements for MTI GSL-1500-50X   tube furnace only ( each furnace has 4 heating elements rods)

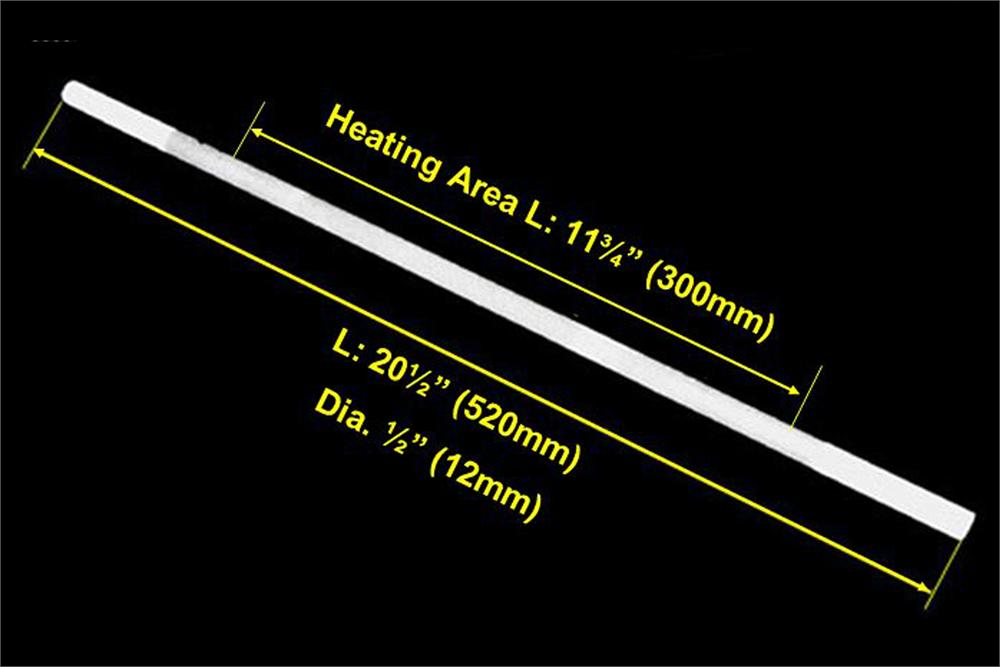

  • Dimension:

            0.5"(12 mm) Dia.
            11¾ " (300 mm) heating zone
            20.5" (520mm) overall length

  • http://www.mtixtl.com/heaterinstallationgsl-1600x.aspx" style="font: 9pt Tahoma, Geneva, sans-serif; color: rgb(0, 51, 204); text-decoration: none;">Installation of the SiC rods
  • Notice: For SIC heating element, it is a consumable part, and usually the high performance service life is one year.
