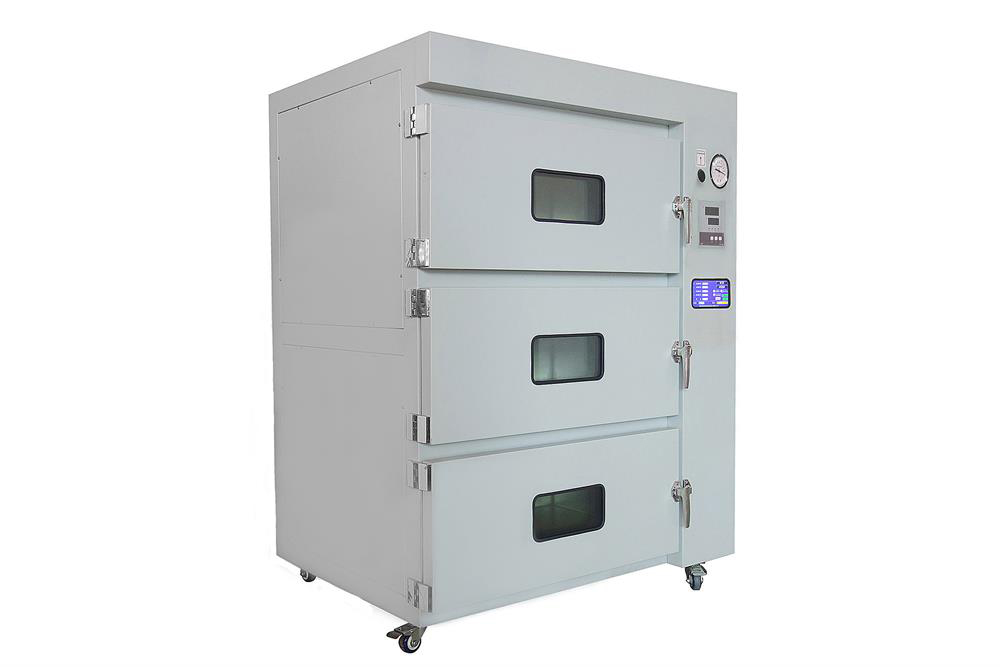

150C Max. Larger Capacity (360L) Vacuum Drying Oven with Tri-level Shelf Heating Modules - DZF-3120

0.0/5 rating (0 votes)


DZF-3120 is a floor stand vacuum drying/degassing/bake-out oven with large capacity (360 liters). It is manufactured with carefully selected UL/CSA/MET electrical components ( >24V DC/AC) which ensure the outstanding system performance and quality. ADVANCED FEATURES:

  • Tri-level individual shelf heating modules provide ideal temperature uniformity, heat-up efficiency, and spacing for vacuum drying, degassing and bake-out applications.
  • PLC touch screen control enables automatic cycling conditions such as vacuuming, backfill with an inert gas, heating to the set temp., dwell, timing and pressure control.
  • Local temperature measuring for each heated shelf. The actual temperature of each shelf can be seen separately on the temperature controller.


  • Total capacity: 360 liters (120 liters per level)
  • Inner Chamber size: W800mm x D500mm x H300mm per level
  • A good vacuum seal is achieved by silicone door gasket and positive latch door
  • Three observation windows (12mm thick temper glass), one for each level
  • High-quality glass wool insulation prevents heat loss and maintains a relatively low surface temp. < 40°C during the work
  • Interior material: Stainless Steel 304 (3mm thick)
  • Exterior material: Cold rolled steel plate (1.5mm thick)
Working Voltage Three Phase AC 208VAC  (Three Phase AC 380V is available upon request)
Power Consumption 18KW
Heating Rates RT-80°C, less than 20 minutes (unloaded)
Thermocouple  K type
Working Temperature RT ~150°C
Temperature Control
  • PID precise temperature controls with built-in over-temperature protection
  • Temperature uniformity: +/-5°C @ 100°C
  • Temperature Stability: +/-1°C of the setpoint
Vacuum Pump (optional)
vacuum pump
Vacuum pump is not included, please click the highlighted link in below to order separately:
240 L/m Heavy Duty Double Stage Rotary Vane Vacuum Pump with Exhaust Filter - EQ-YPT-550-LD
Gas Inlet/Vacuum Port
  • Features 1/4" tube fitting for chamber purging with inert gas
  • Vacuum Port: KF-25
Dimensions W1400mm*D1100mm*H1900mm
Shipping Weight  700KG
Warranty One year limited warranty with lifetime support (Note: the silicone door gasket is not covered by warranty)
  • CE Certificate with UL/CSA certified components (>24VAC/DC)
  • UL certification for the entire system (UL 61010) is available upon request. Additional certification fee will be applied.
Operation Instructions Coming soon...
Application Notes
  • Such an oven is an excellent tool for the larger volume of battery electrode drying. MTI offers cathode/anode materials for battery research, please click the picture in below to order:
