1650C Grade Kanthal GLOBAR-SG SiC Heating Element( 6" heating zone x 410mm L ) - EQ-1600sp-HEL-6-410-LD

0.0/5 rating (0 votes)


Kanthal GLOBAR® Silicon Carbide ( SiC ) Heating Elements are used in applications ranging in temperature from  400oC up to 1600 oC in both air and controlled atmospheres.


  • Kanthal GLOBAR-SG Silicon Carbide made in Swiden
  • Surface Temperature, Max.  1650 oC
  • Continuous working temperature 1600 oC

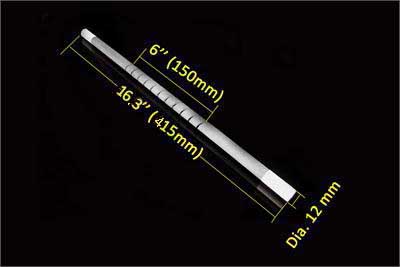

  • Dimension:
    Please click underline below to download detail specification data sheet
    • 12 mm dia.
    • 6" ( 150 mm length ) heating zone.
    • 16.3" (415mm length)overall Length

 Specification data sheet


  • Click to view the Installation of the SiC rods [MTI PRODUCT] OTF-1600X-UL
  • Please notice,  For SIC heating element, it is a consumable part, and not covered by warranty ,and usually its service life is one-year.
