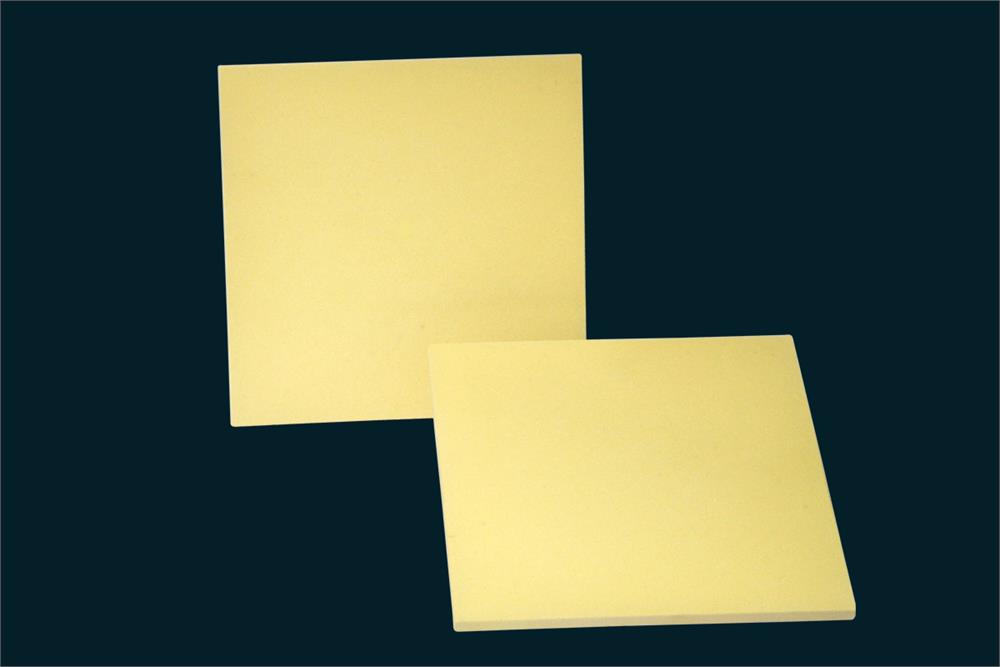

1700℃ Grade Sintered Zirconia ( Cao stabilized ）Ceramic Board, 150 mm x 150 mm x 5.0 mm (1 pc) - EQ-CZB-150-5
Description
EQ-CZB-150-5 is a calcium stabilized zirconia ceramic board as a base liner for sintering high purity ceramic parts without contamination. It is used for MTI high-temperature box ( muffle ) furnace.
Size: 150 mm x 150 mm x 5 mm thickness
Specifications
Parameter | Data |
Al2O3 | ≤0.5% |
SiO2 | ≤0.5% |
Fe2O3 | ≤0.09% |
ZrO+CaO | ≥98.5% |
Density | 4.3-4.6 g/cm3 |
Porous rate | 22-26 % |
Compressive strength | 20 Mpa |
Thermal expension @1100℃ | 0.8-0.9% |
Max.working temperature | 1700℃ |
