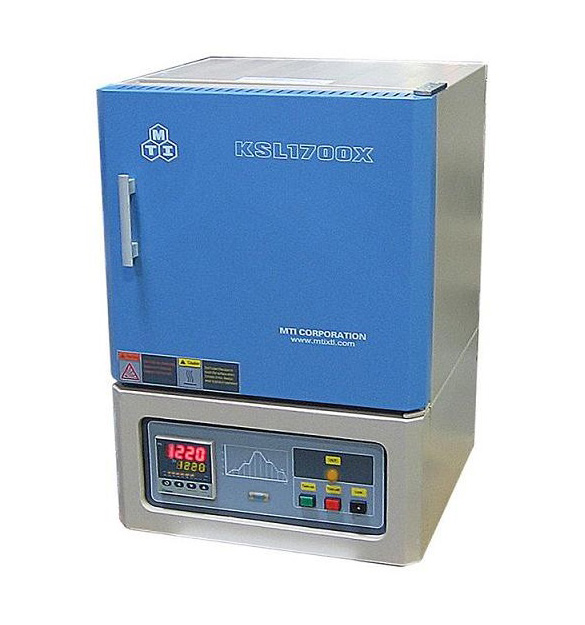

1750°C Bench-Top Muffle Furnace (6"x6"x6", 3.6L) with UL recoganized Components & Kathal Super-1800 Heating Elements - KSL-1700X-UL

0.0/5 rating (0 votes)

Description

Item Number:KSL-1700X-UL

KSL-1700X -UL is a bench-top ultra-high temperature muffle furnace built by the components UL recoganized andKathal HT (1800 grade) MoSi2 heating elements with Max working temperature of 1750°C. It is ready to pass all safety test world wide.

SPECIFICATIONS

Furnace Structure
  • Double shell steel case with cooling fan to keep case surface cool
  • High purity alumina fiber insulation for max. energy saving
  • All electriccomponents are UL or Met recognized and ready to pass any safety test worldwide
Dimensions
  • Chamber: 160 x 150 x 150mm (6.3" x 5.9" x 5.9"), 3.6L
  • Overall: 515 x 500 x 730 mm (20.28" x 20" x 28.75")

Power

4.8 KW

Voltage

AC 208V-240V single phase, 50/60 Hz (50A air breaker required)

Standard Working Temperature

1700° C or 3092° F (continuous)

Maximum Working Temperature

1750° C or 3180° F (< 3 hours)

Heating Rate

0~20°C / min (suggestion =< 10°C)

Temperature Accuracy

+/- 1° C

Temperature Uniformity

  • +/- 5°C over 120 mm (5") @ 1700°C
  • +/- 2°C over 80 mm (3") @ 1700°C

Heating Elements

Kanthal Super-1800 grade MoSi2 (4 pcs U shape)

Thermocouple

B Type (Pt-Rh to Pt-Rh) with Alumina tube

Temperature Controller

  • MET certified PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired, current limiting resistor.
  • 30 programmable segments for precise control of heating rate, cooling rate and dwell time.
  • Please click here to learn why SCR is more accurate than SSC (Solid state relay).
  • Built in PID Auto-Tune function with overheating & broken thermocouple broken protection.
  • Over temperature protection and alarm allows for operation without attendant(s).
  • +/- 1 ºC temperature accuracy.
  • RS485 Communications Port
  • PC control software is included
Power Cable & Plug
  • 10 feet length 10-3 AWG heavy duty UL approven power cable is included
  • Extra length cable can be ordered by click picture below
  • Plug is not included. You can order from your local haedware store according to female plug in your lab, or order from link below (30A plug)

Net Weight

46 Kg (100 lbs)

Shipping Weight

145 lbs

Shipping Dimensions

45" x 45"x 45"

Warranty

  • One year limited warranty with life time support. (Consumable parts such as sample plates and heating elements are not covered by the warranty, please order the replacement at related products below.)
  • ATTENTION: Any damages caused by the use of corrosive and acidic gases are not under the coverage of MTI One Year Limited Warranty.
Compliance
  • Furnce: CE certified .
  • Ensure to pass UL and CSA inspection

Application Notes

  • For preserving the longevity of the furnace components, we recommend the heating rate not to exceed 10 °C /min.
  • Cooling rate shall also not exceed 10 °C /min.
  • This furnace lacks vacuum sealing, toxic or explosive gases are not recommended for use with this furnace without necessary safety controls and supervision.
  • Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
  • Please click here to learn how to DIY gas purging system.
  • Refractory block must be inserted before closing door.
Operation Instructions

STANDARD PACKAGE

P/N
Description

Quantity


KSL-1700X

KSL-1700X High Temperature Muffle Furnace

1 set

KSL7-01

Kanthal Super 1800C Grade Heating Element, 4 pcs installed in furnace

4 pcs

KSL7-02

B-Type Pt-Rh to Pt-Rh Thermocouples with Alumina Protection Tube

1 set

KSL7-03

Al2O3 Sample Plate ($95.00/ea)

1 pcs

KSL7-04

Al2O3 Furnace Door Block ($180.00/ea)

1 pcs

KSL7-06

Crucible Clip ($25.00/ea)

1 pair

KSL7-07

Operation Manual

1 set
