1800C Grade Sintered Al2O3 Plate for KSL-1700X Muffle Furnace - EQ-ALPlate

0.0/5 rating (0 votes)

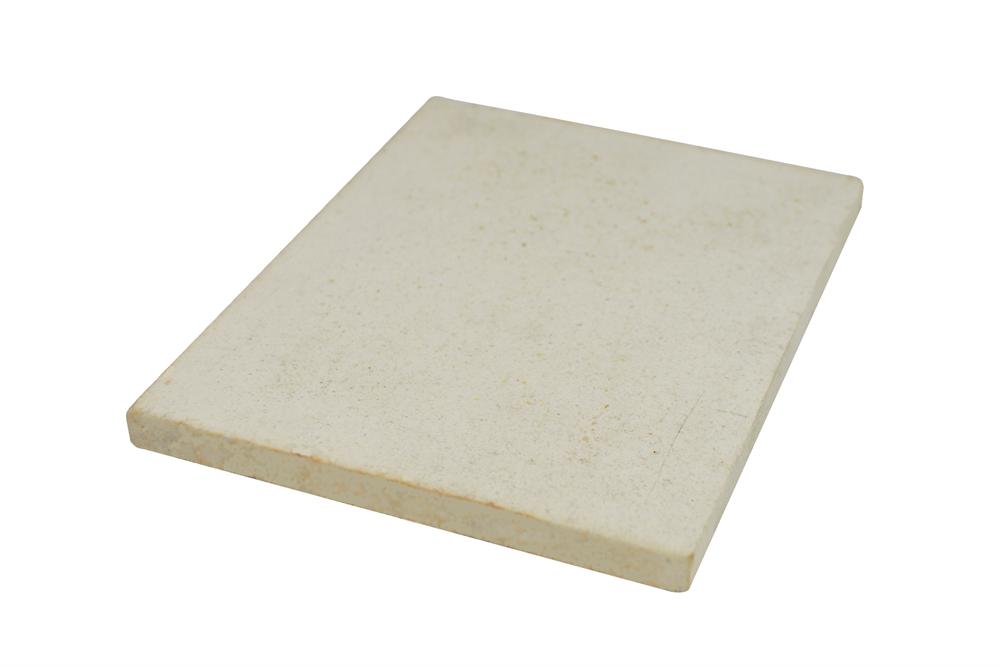

EQ-AlPlate-1512 is a 1700 oC max refractory alumina board to be put on the bottom of MTI KSL-1700X muffle furnace.


  • Max Working Temperature: 1700 °C
  • Ideal for use as furnace support in sintering, heat treating, and chemical thermal process systems
  • Non-Flammable
  • Excellent thermal shock resistance
  • Resistant to oxidation and attack by furnace atmospheres
  • Excellent thermal stability
  • Product Composition: ~78% Alumina, ~21% SiO2, ~0.3% Fe2O3.
Product Demension
  • Size 1: 150 mm L x 120 mm W x 10 mm for KSL-1700X-A1 and A2
  • Size 2: 280 mm L x 200 mm W x 10 mm for KSL-1700X-A3
Application Note
  • Use the plate as a crucible supporter.
  • Use the plate as a workaround for damaged furnace floor.
  • Contact us for its compatibility for other muffle furnace.
  • Can be used as insulation packing in furnace spaces and around furnace sight tubes & ports
