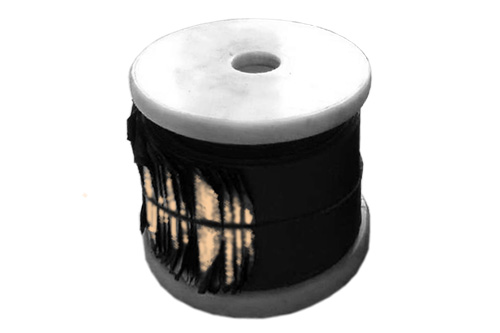

18650 Li-Ion Battery Anode Strip of CMS Graphite (750mm L x 58mm W x 0.11mm Thickness) 50 pcs/roll - bc-cf-750-ds

This electrode strip is composed by coating carbon on both sides of copper foil. It is used as the anode of 18650 Li-Ion battery.

Specifications

Current Collector (Substrate)	Copper foil
Dimensions	750mm(L) x 58mm(W) x 0.11mm(T)
Active powder SSA (BET)	3-5 m^2/g
Binder	SBR+CMC
Coating	Double sided
Double Side Density	140-160 g/m^2
Application Notes	Video Please click here for Budget Planning for Researchers to Set up A Complete Cylinder Cell R&D Lab with MTI's Battery Equipment Please click here to order related consumables Note: Please store moisture-sensitive consumables in the vacuum storage box, which will help prevent damage and prolong the integrity of the material. Click here for equipment selection
