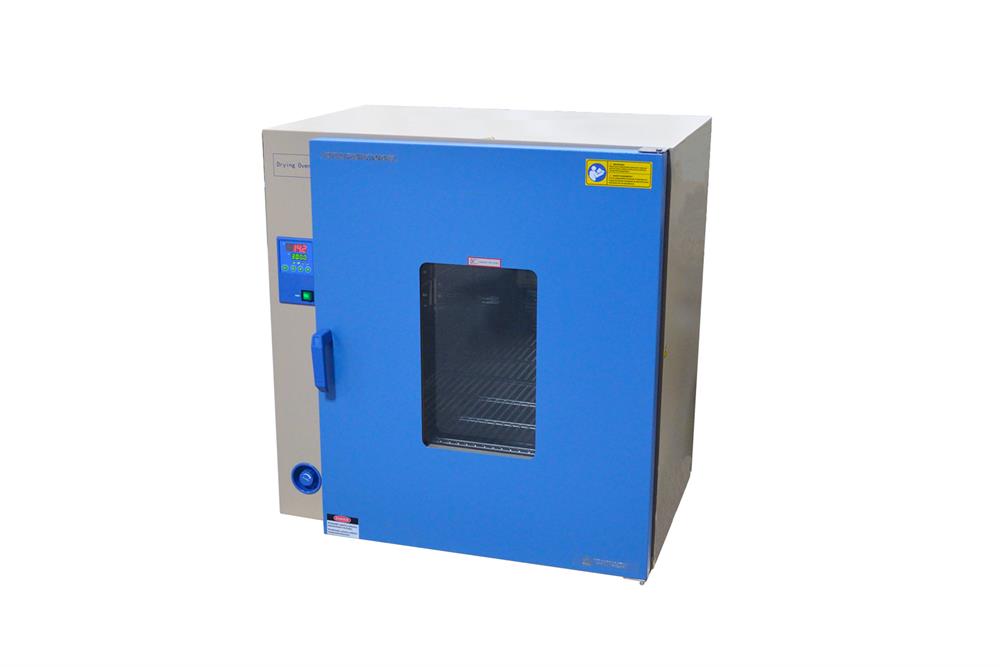

190L Convection Drying Oven with Digital Temperature Controller (23.5"x17"x29.5", 250C) - EQ-DHG-9245A

0.0/5 rating (0 votes)


DHG-9245A is a reliable forced air drying oven, which can heat upto 250°C. It can provide uniform heating conditions for a variety of laboratory applications. SPECIFICATIONS:

Working Voltage AC 220V - 240V (50-60Hz)
Max. Power Consumption 2450W
Max. Working Temperature 300°C max for < 30 minutes
250°C continuously
  • Interior Material: Polished Stainless Steel sheet
  • Chamber Dimensions: 600mm(L) x 430mm(W) x 750mm(H) (23.5"x17"x 29.5")  ( 190.5 L Capacity)
  • Silicone O-ring is included (Spare O-ring is available, please contact us for more information)
  • Two adjustable chrome-plated wire shelves are included
Venting Port
Two 40 mm Dia. Venting ports are installed on the back of the oven.
Temperature Controller
  • One Set Point Precision Temperature Controller with +/-1°C tolerance
  • Digital temperature display for easy operation and overshooting adjustment
Product Dimensions 885mm(L) x 630mm(W) x 930mm(H) (34.8" x 24.8" x 36.6")
Net Weight 250 lbs
  • CE Certified.
  • NRTL cetification is available upon request at extra cost
Warranty One Year limited warranty with lifetime support (The consumables are not included in the warranty, such as O-rings)
Operation Instruction
Shipping Dimensions 48" x 40" x 50" (L x W x H)
Shipping Weight 320 lbs
