  6. 2" x 4" Pre Pressing Die Made of Aluminum -Alloy for Polymer Compound - EQ-Die-2-4-Al

Categories

Pressing Dies ( 1.1 " -- 5" ID) | Temperature Control Units and Software | Furnace Accessories

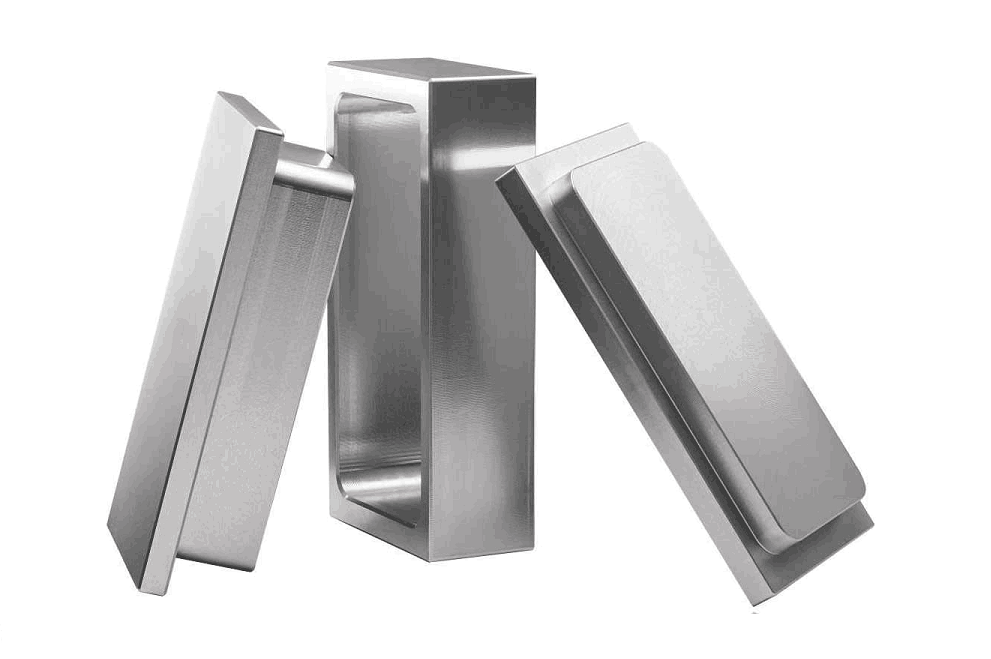

2" x 4" Pre Pressing Die Made of Aluminum -Alloy for Polymer Compound - EQ-Die-2-4-Al

0.0/5 rating (0 votes)

Description

SPECIFICATIONS:

Model    EQ-Die-2-4-Al
Inside Size of Mold   W40.5 mm x L 85.2mm x  H 25.9 mm
Outside Szie of mold   W51.8 mm x L 1101.54 mm x  H 25.9 mm
Material  6061 aluminum alloy
Max. Pressing Load   4  Metric Tons
Max. working Temperature   200oC
Application Note
This rectangular die is designed for pre-pressing of flexible polymer sheet for hot rolling, especially for
The procedure is suggested  as the below:
  1. Mixing the solid powder with liquid PTFE by high energy mixer (Pic. 1)
  2. Put the mixed powder into the die, and hot press to form a  2-5 mm thick sheet (Pic. 2)
  3. Hot rolling the polymer sheet into a thin electrode sheet ( 10 - 50 microns)  ( Pic. 3)
  4. It is the customer responsibility to find the most suitable parameters for mixing, pre-mold, and rolling based on your materials
Pic. 1      Pic. 2     Pic. 3
Warranty
  • Pressing Dies are consumable products and are not covered by MTI's warranty.
