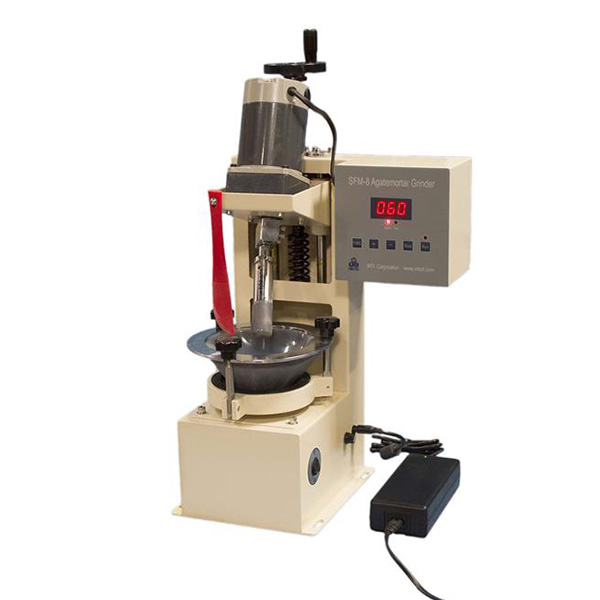

2 Yrs Warranty- Automatic Desktop Grinder w/ 5" Agate Mortar ( Ar Gas Compatible) - MSK-SFM-8

0.0/5 rating (0 votes)

Description

MSK-SFM-8 is designed for grinding & mixing a small batch of chemical and compound automatically for R&D laboratory. Its mortar and height adjustable pestle are designed for efficient, easy, and uniform grinding. The mortar can be taken off easily for cleaning. It is an excellent tool for preparing various ceramic materials in a research lab so as to save labor. Grinding time can be set using the automated controller. Minimum granularity can be as small as microns even nanometers.  The grinder can be used under Ar gas in a glovebox. SPECIFICATIONS

Working Voltage

  • 110- 240V AC via 24V DC power adapter is included for universal using
  • The power adaptor is UL, TUV, CSA and CE approval for worldwide use.
  • It can be used in Ar gas glove-box
Max. Power Consumption 120W
Grinding Bowl


Plastic Spatula

  •  It is designed for spreading the substance in the grinding bowl to improve the performance of mixing.
Grinding Speed & Pressure
  • Mortar: 0 - 10rpm
  • Pestle: 0 - 80rpm adjustable
  • Grinding pressure is adjustable by spring
Dimension 240mm(L) x 240mm(W) x 500mm(H) or 9.4" x 9.4" x 19.7"
Net Weight 38 lbs
Shipment Dimension 40" x 20" x 30" (L x W x H)
Shipping Weight 65 lbs
Warranty Two-year limited warranty with lifetime technical support
Note: Consumables and damages due to improper use are not covered by the warranty.
Compliance
  • CE,  TUV, UL, CSA  certified in power supply
  • The machine is safe 24VDC input, which can be used without any safety certification
  • NRT or CSA certification is available upon request at the extra cost
Operation  Video
Application note
Warning
  • Do not grind samples that have more than 7.5 Mohs hardness scale, the Pestle head or Mortar may have an overpressurizing situation.
  • Do not grind samples O.D larger than 2mm.
  • Do not use any hydrofluoric acid and explosives samples.
  • Wear protective clothing and equipment appropriate for the hazard samples.
  • Do not heat the grinder, or put it in a dry oven for drying.
  • In order to avoid overpressurization of the Pestle Head, the grinding process should be step by step,  increasing pressure by applying only half turn each time, and the Pestle head has a compressive depth limit of (up to) 3mm.
