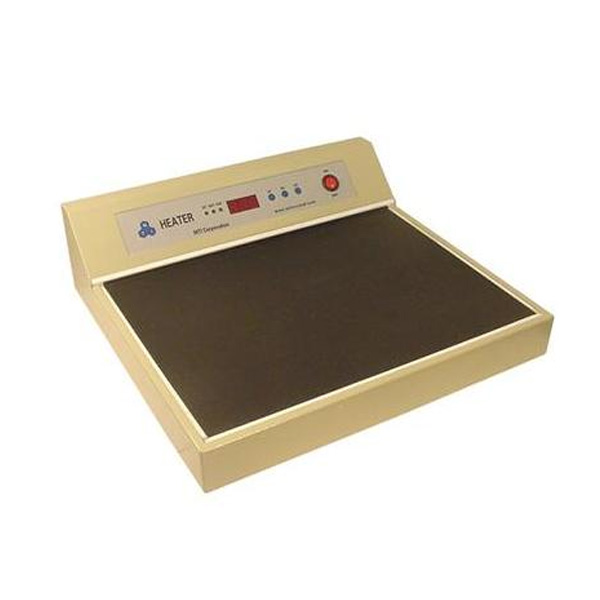

200C Max. Precision Hot Plate with a Large Heating Area (373 x 273 mm ) - EQ - HP3040

0.0/5 rating (0 votes)


HP-3040 is a precision hot plate with a larger heating area ( 15"x11")  and a digital temperature controller, which is designed to mount the crystal samples on the polishing machine by wax. It is also useful for precision heating of all kinds of chemicals.


  • Digital temperature control from 35 °C - 2000 °C with +/- 1 °C accuracy.
  • Extra flat surface, which is ideal for flat substrate wax mounting before polishing.
  • Excellent for heating and mounting brittle crystal materials at a uniform temperature.
  • Aluminum plate for more even temperature distribution.
  • Detachable heating plate for easy maintenance.
  • Heavy duty structure with one year warranty.
 Model 3040
 Power supply AC 220V, 5/60 Hz
 Power 1200 W
 Max. Temperature 200 °C (392 °F) Max.
 Temperature Control PID controller with +/- 1 ºC accuracy
 Heating Area 373 x 273 mm (14.7" x 10.7")
 Dimensions 373 x 400 x 130 mm (13.3" x 15.7" x 5.3")
 Net Weight: ~30 lbs (~~14 kg)
 Shipping Volume 21x12x17"
 Shipping Weight: 33 lbs
Temperature Measurement
  • PT100 (Resistant temperature detector)
  • Unlike thermocouples, it is not necessary to use special cables to connect to the sensor. The principle of operation is to measure the resistance of a platinum element. The most common type (PT100) has a resistance of 100 ohms at 0 °C and 138.4 ohms at 100 °C.
 Operation Instructions
