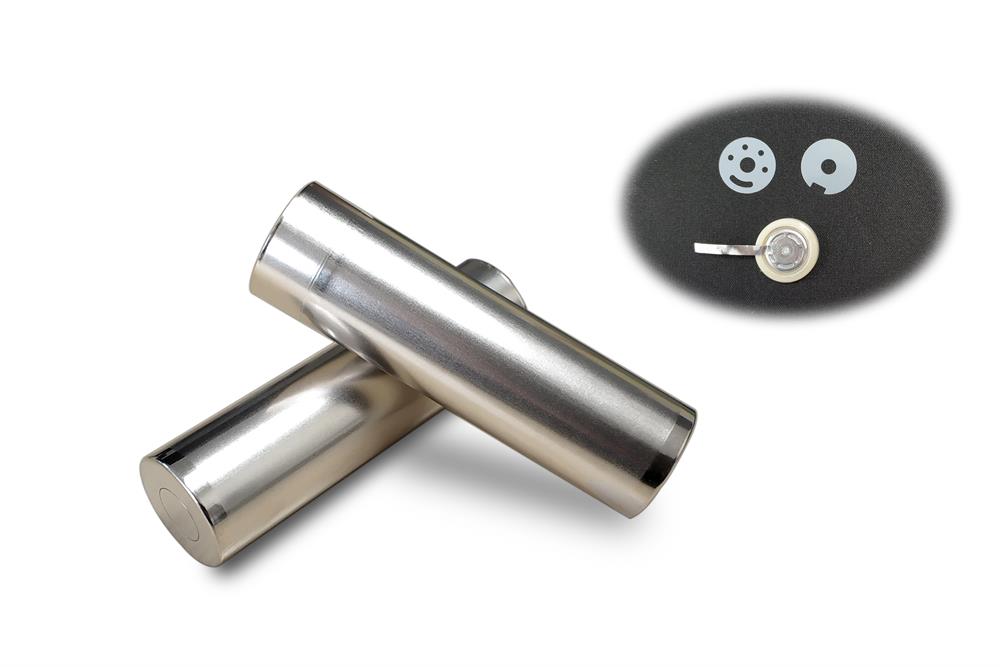

21700 Cylinder Cell Case with Anti-Explosive Cap and Electrode Tab - 100 Pcs/package - EQ-Lib-21700

0.0/5 rating (0 votes)

Specifications
Material	Case and cap are made of Nickel plated A3 steel Seal O-rings are made of nylon Insulating gasket is made of PET
Dimensions (Dia x Height)	Case: 21.2mm (OD) x 20.7mm (ID) x 73.1mm (H) Top Cap: 20.4mm (D) x 4.2mm (H)
Weight	8.45 g/pcs
Note	Safety valve's open pressure: 1.8 - 2.4MPa (the cap valve will open to release interior high pressure if over 2.4MPa, to ensure the can does not explode)

Application

To seal the cylinder cell, you should firstly groove it by MSK-500 and then crimp it by MSK-510

Grooved by MSK-500

Sealed by MSK-510
