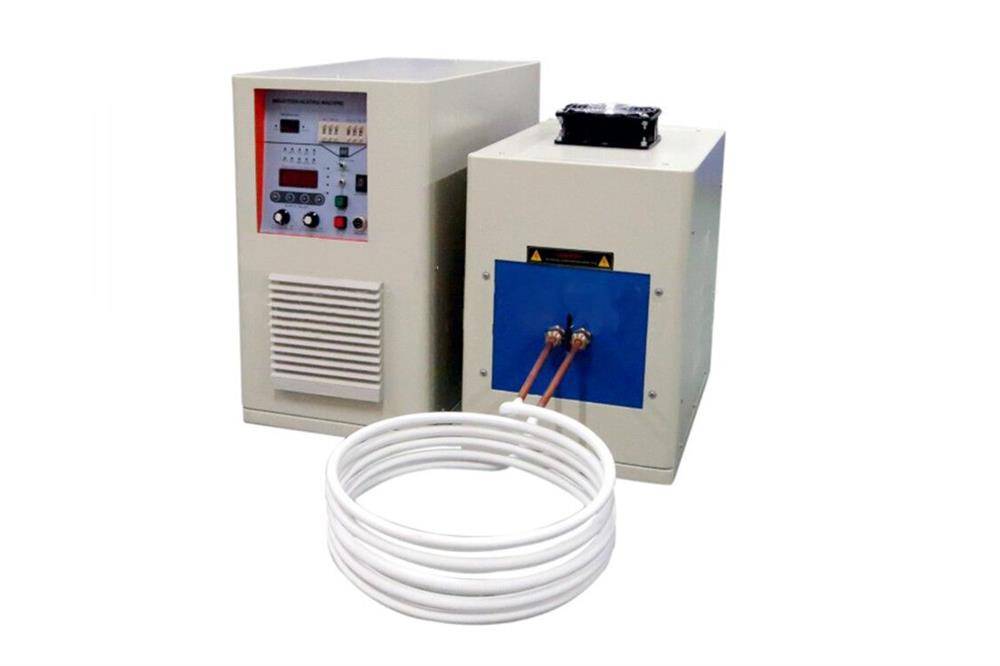

25KW (30 - 80 kHz) Induction Heating System with Timer Control - SP-25BD

0.0/5 rating (0 votes)

Description

SP-25BD induction heater features the latest inverting technology so as to make itself light and convenient. Its 25KW Induction Heater is designed for the material research lab to quickly melt and perform heat treating to metallic materials. SPECIFICATIONS:

Induction Heater

  • Working Voltage: 220V AC, 50/ 60Hz, Three Phases (380VAC, 3phase available upon request)
  • Working Current: 10~86 Amps (100A breaker required)
  • Max. Input Power: 25 KW
  • Output Frequency: 30 - 80 kHz
  • Duty Cycle: 100%
  • Induction Coil: 150mm(OD) x 140mm(ID) x 65mm(H)
  • Air Cooling: Rear Fan
  • Protection: Automatic water pressure, over-temperature, and overpower protection
  • Refractory Assembling: Complete refractory assembling made of alumina, including bottom crucible support, crucible holder, and cover
Timer Control
  • Automatic timer control or  Manual control selectable
    • Manual Control: by Foot Pedal
    • Automatic Heating Time: 1-99 Seconds
    • Automatic Dwell Time: 1-99 Seconds
    • Automatic Cooling Time: 1-99 Seconds
Temp. Controller & Thermocouple (optional)
  • Precision digital temperature controller with Automatic PID tuning
  • 30 segments programmable for controlling heating and cooling rate as well as dwell time.
  • Overheating & thermocouple failure protection.
  • +/- 3 ºC temperature accuracy.
  • +/- 3 ºC temperature accuracy.
  • Thermocouple: C type  ( 1/4"x10"L )   ( pls click here to order spare as consumable )
  • Continuous Working Temp. Range: 1000ºC~1900ºC
  • Max. Working Temperature: 2000ºC (for less than an hour)
  • Max. Heating Rate:
    •  4ºC/second (1000ºC-1200ºC)
    • 3ºC/second (1200ºC~1500ºC)
    •  1ºC~2ºC/second (1500ºC~2000ºC)
Water Cooling
  • Flowrate: >10 L/Min
  • Pressure: ≥0.2 MPa (29 Psi)
  • Tap water is acceptable, but using a Recirculating Water Chiller is highly recommended. Please click here to order separately
  • Protection: Overpressure and over-temperature switch
  • Recirculating water Chiller (58 L/min) is required as an option at extra cost
Warranty
  • One year limited warranty with lifetime support
  • Consumable parts such as processing tube, thermocouple, refractory liners, o-rings, and heating coil are not covered by the warranty
Compliance
  • NRTL or CSA Certification is available upon request at extra cost, please contact us for a price quote. Certify standards include: 1) Induction heater: UL61010-1 & UL499; 2) Vacuum Pump: UL1450; 3) Water Chiller: UL61010 & UL1995
Operation Manual
Application Notes
  • Attention: Protective inert gas must be continuously filled throughout the experiment in order to protect the graphite crucible and C thermocouple.  The gas flow rate should be limited to <  200ml/min。
  • The induction coil may inerted into the glovebox via special KF40 feedthrough with inert gas
Shipping Weight TBD
Shipping Dimensions TBD
