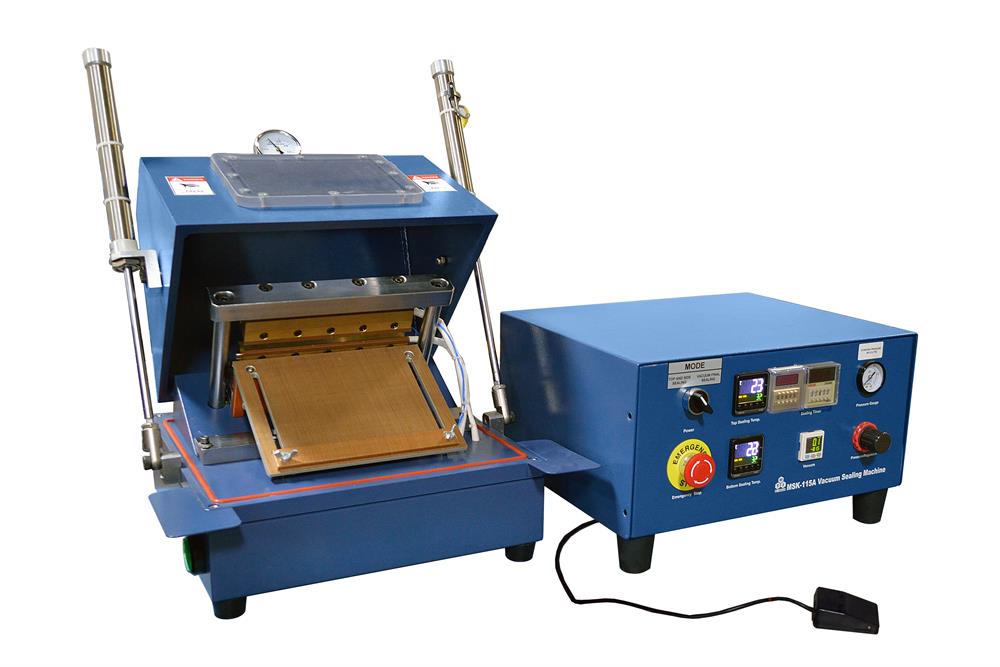

3-in-1 Sealer for Top/Side & Final Vacuum Standing & Sealing for Pouch Cell (200mm W) - MSK-115-III

MSK-115-III is a 3-in-1 compact hot sealer.

• the preliminary sealing top and side of the pouch cell before electrolyte injection (MSK-140)
• the vacuum sealing for the pouch case after injection of electrolyte in the glove box (MSK-115A)
• the vacuum standing for the electrolyte diffusion and degassing (MSK-170) (Vacuum time adjustable)

It is designed for Li-S pouch cell preparation in glove-box for space-saving.
MSK-115-III is an upgraded version from MSK-115A with an extra top&side sealing function and a vacuum timer.
MSK-115-III has been upgraded from MSK-115-AB since 08/24/2017.

SPECIFICATIONS:

Features	Sealing Mode (Top, Side, and vacuum): MSK-115-III with Rubber Sealing blade and Manual Footswitch is specially designed for hot sealing the top side of the pouch cell with the tab extruded. Unlike hard-type sealing blades, the soft-type sealing blade is able to eliminate the sealing gap caused by the battery taps. Vacuum Sealing Mode: After electrolyte injection, The device will perform the final vacuum sealing for the pouch cell.  Vacuum Standing Mode: Before the vacuum sealing,  The device can do the vacuum standing for the electrolyte diffusion and degassing. The vacuum timer would be used for standing time control. Please click pic.2 to watch the sealer operation video. Please click pic.3 to see the vacuum timer operation for the vacuum standing. pic. 1      pic.2    pic.3
Max. Sealing Dimensions	200mm(L) x 150mm(W)
Edge Sealing Width	5mm
Sealing Blade	Soft type (with rubber, suitable for sealing the case with the tab in between)
Power Supply	110V or 208-240V selectable, Single Phase 50/60Hz
Max. Power	600W
Vacuum Level	-90 kPa Max The vacuum pump is not included. Please click here to order at extra cost. If you have your own pump with KF25 PORT, Barbed fitting to KF-25 Adapter is included for immediate use.
Sealing Pressure	0~7Kg/cm² adjustable: Vacuum chamber lid and sealing die to need to be driven gas, Recommended driven gas pressure 60 psi. Please use high purity inert gasses (Ar or N2), when operating in the glove box. Using Air Compressor driven when operating outside the glove box. Air compressors and fittingare not included. Please click here to order or order from your local hardware store. Gas/Air tube size is 6.
Sealing Temperature	50 - 250°C adjustable with control accuracy of +/-2°C
Heating Timer	0 - 99 seconds Adjustable
Glove Box Compatibility	KF40 Feedthrough with all necessary wire and tube are included to allow operating inside Glovebox, which has a KF40 port (Click on the first and second pictures for details) Please use Inert gas when operating in the glove box.                            Attention: High purity inert gasses and a Vacuum Pumpare necessary for operating the MSK-115A and MSK-115AL Vacuum Sealer, please order them from the related products below.
Compliance	CE Certified NRTL certification is available upon request at an extra cost Granted the patent 201220296252.X for the Pouch Cell Sealing Machine MSK-115-III since January 2013.
Warranty	Year limited warranty with lifetime support
Operation Manual & Video	How to make pouch cell        How to operate in a glove box     How to control the vacuum  time          How to make a single layer pouch cell
Optional	You may choose the compact machine below to make pouch cells inside the glovebox Case forming    Die Cutting   Stacking     Welding
Product Dimensions		Chamber Closed: 470L x 430W x 480H, mm Chamber opened: 470L x 430 W x 560H, mm Control Unit: 420L x 320 W x 220 H, mm
Net Weight	150 lbs
Shipping Weight & Dimension	215 lbs; 48" x 40" x 29"
