3 Pcs Copper Foam Sheet (Porous Cu) for Battery Anode Substrate (300Lx 80W x 0.08 mm thickness) - EQ-bccf-80um

0.0/5 rating (0 votes)

Description

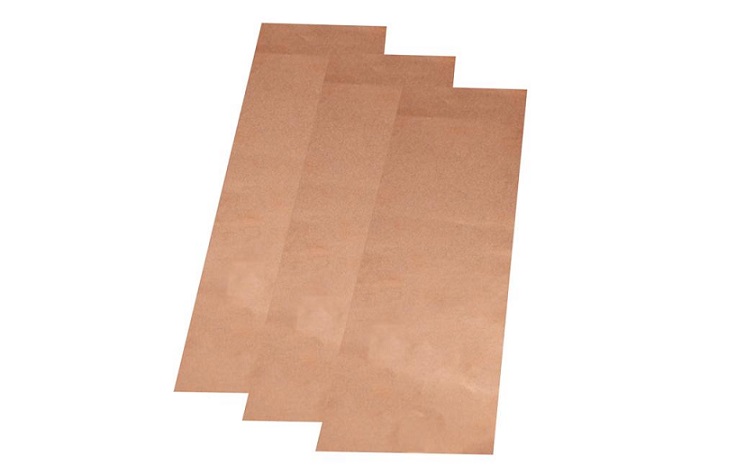

Copper Foam for Battery Anode Substrate  (300mm length x 80mm width x 0.08mm thickness) - EQ-bccf-80um

Specifications

  • Material: Copper Foam, Purity> 99.99% (excellent anti-corrosive)
  • Sold by three pieces
    Surface Density before rolling: 350g/m^2
    • Length: 300 mm
    • Width: 80 mm
    • Thickness: 0.08 mm
    • Net weight:13.72g
  • Porosity: 70~80%
  • Extensibility: Lengthwise≥5%; Widthwise≥12%
  • Tensile Strength:Lengthwise≥1.25N/mm^2; Widthwise≥1.00N/mm^2
You can press the copper foam into thinner sizes by using a roller press.
Click the picture below to see the battery electrode coated by Automatic Film Coater with 12"W x 24"L Glass Bed and 250mm Adjustable Doctor Blade - MSK-AFA-II


Click the video below to learn how to solve the copper foam sheet oxidizing problem.
