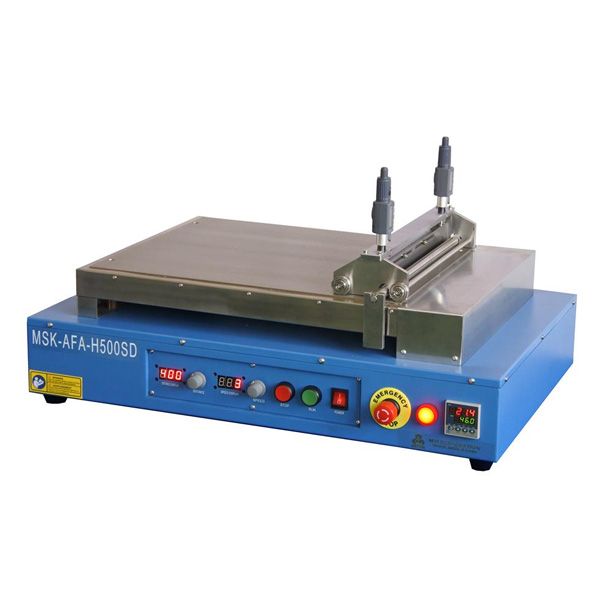

300mm Wide Slot-die Sheet-to-sheet Coater w/ SS316 Heating Vacuum Chuck (150°C, 400 W × 500mm L) - MSK-AFA-H500SD

0.0/5 rating (0 votes)


MSK-AFA-H500SD is a flat slot-die coater with a 500mm L x 400mm W vacuum chuck and bottom heater, which can coat film up to 400 mm L x 380 mm W from 5 - 100 microns thickness via a special slot-die fixture, which has three precision rollers on the bottom to make slot-die coating uniform at low cost. It is an excellent tool to fabricate think films for perovskitesolar cells, fuel cells, and batteries.
The item number has been updated from MSK-SD-300 since February 2022


Working Power
  • 110 V or 208 - 240V AC selectable
  • 50/60Hz
  • 3000W
Film coater
  • Vacuum chuck made of SS316 alloy with < 1.0 mm hole
    • Vacuum Chuck Dimensions: 500 mm (L) x 400mm (W)  (19.7 “L x 15.7" W)
    • The chuck is heated up to 150ºC by a digital temperature controller with +/- 1ºC accuracy
  • Moving Speed: 5  - 100 mm/sec variable
  • Moving Length:10 - 400 mm adjustable by the Adjustable Position Switch
  • The vacuum pump is not included, please click the picture to the left for ordering.
Slot Die Fixture

  • A  slot-die with 300 mm width is installed on a moveable fixture that has three precision rollers on the bottom (Pic. 1)
  • The pushing rod will push forward the slot-die head to coat the slurry on the substrate smoothly without touching the substrate
  • The gap between the coating blade and the substrate plate is adjustable with +/- 1-micron accuracy via dual digital micrometers (Pic. 2)
  • An optional multi-slid-die fixture is available upon request upon request at the extra cost. (Pic. 3-4)
 Pic. 1   Pic. 2         Pic. 3              Pic. 4

Optional Syringe Pump

  • Digital Controlled Syringe Pump
  • Holds syringes up to 60 mL
  • Remembers previous settings on power-up
  • Pumping rate: 25 mL/hr with a 60mL Syringe
  • Infuses Only. Does not withdraw the syringe
  • Please click the picture to the left for ordering
  • In order to achieve better coating by the slot die, slurry's  Viscosity and dispersion is very important.
  • Please click picture 1 to order the Viscosity meter and dispersing machine (Pic. 2) and find the best parameter for your coating
  • Pic. 1 Pic. 2
  • CE certified
  • NRTL or CSA certification is available upon request at the extra cost
  • One year limited warranty with lifetime support
Demo Video
With Slot Die: 740mm(L) 500mm(W) 420mm(H)
Coater Only:   740mm(L) 500mm(W) 217mm(H)
Shipping Dimensions 48"(L) x 40"(W) x 37"(H)
Shipping Weight 200 lbs
