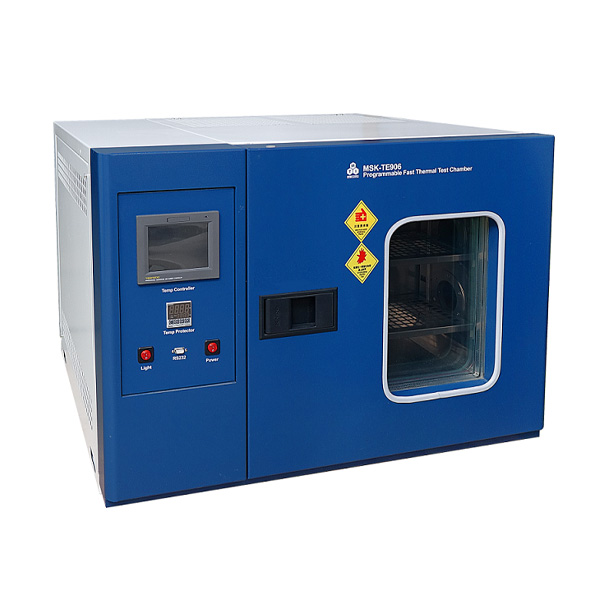

30L Benchtop Programmable Fast Thermal Test Chamber (-40C to +100C, UN38.3.4.2) - MSK-TE906-30L

0.0/5 rating (0 votes)

Description


MSK-TE906-30L is a 30-liter benchtop programmable thermal test chamber for the thermal test of Rechargeable Battery & Battery Pack according to UN38.3 (38.3.4.2) and other thermal tests from -75ºC to  +100ºC at faster heating and cooling rate.

SPECIFICATIONS
Test Chamber Features
  • Made of SS304 stainless steel with thermal insulation of foam polyurethane and fiberglass.
  • Inside chamber dimensions: 30 cm(W) x 45 cm(H) x 23cm(D)
  • Product dimensions:             85 cm(W) x 75cm(H) x 60cm(D)
  • Capacity:                                30 Liters
  • Two 4" holes are on the right side for electric wires feedthrough
Control Panel
  • 6" touch-screen control panel to set up the program, and display temperature profile
  • The controller is  programmable, and each program can be repeated up to 999 times
  • RS232 port and software are included to allow PC remote operation
Cooling & Heating System
  • High-quality refrigeration  compressor made in France
  • Refrigerant R404A, environmental friendly
  • Stainless heater tube
  • Built-in beep alarm for over-heated and over-current
  • Working Temperature: Programmable from -40ºC  to +100ºC
  • Temperature accuracy: +/- 1ºC
  • Max. Heating rate:        ~ 4ºC/min   ( RT to + 100oC)
  • Max. Cooling rate:        1.5ºC/min   ( RT  to - 40oC )
Power
  • Voltage: 208 - 240VAC ( single-phase, 50 or 60 Hz selectable)
  • Power:   1.8 KW Max.
  • Can be used at 110oC via 5KW transformer from 220-110VA
Machine Dimensions
& Weight
  • 85 cm(W) x 75cm(H) x 60cm(D)
  • 100kg
Warranty
One year limited manufacturer's warranty with lifetime support; extended warranty available upon request at an additional cost
Compliance
  • CE
  • NRTL or CSA certification is available upon request at an extra cost
