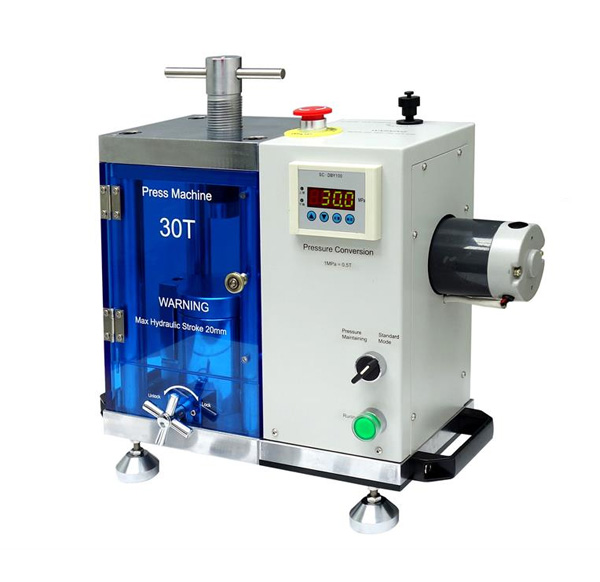

30T Desktop Electric Hydraulic Laboratory Press with Precision Pressure Controller - YLJ-E30T

30T Desktop Electric Hydraulic Laboratory Press with Precision Pressure Controller - YLJ-E30T

0.0/5 rating (0 votes)


YLJ-E30T is an  electric hydraulic pressing machine with pressure capability up to 30 metric tons for the fast and easy preparation of compound or ceramic samples.YLJ-E30T has a built-in 24VDC electric hydraulic pump with a precise pressure controller to keep pressure in constant automatically. It is an excellent tool for material/ceramic/ chemistry laboratories to make larger pellet samples, and can be used under the Ar atmosphere. SPECIFICATIONS:
Working Pressure Range
  • 0 ~ 30 Metric Tons  (0-30Mpa in gauge)
Gauge Pressure Value to Force Conversion
  • Displayed Pressure Value to Actual Applied Force Conversion: 1 MPa = 1Ton
  • The actual force applied to the Hydraulic Cylinder (Ton) equal to the force applied on your working piece
  • For calculating the actual pressure (MPa) applied on your working piece, please follow the equations in below:
  • P = T x g x 10/ (πr^2)
      • P: Pressure (MPa) applied on your working piece
      • T: Force (Ton) applied to the Hydraulic Cylinder
      • g: Standard gravity. g ≈ 9.8 m/s2
      • π: ~3.14
      • r: Radius (cm) of the working piece
Pressure Stability
  • ≤ 1 MPa / 5 min
  • Universal Power Adapter 100-240 VAC 120 W (UL Certified)
  • 24 V, 40 W DC Motor
Electric Hydraulic Pump
and Digital Pressure Controller
  • Pressure controller with digital display (0.1 Ton accuracy)
  • Two Modes of pressure control
    • Pressure load will stop when the pressure reaches the pre-setting point
    • Automatic pressure maintaining with "Pressure Maintaining" Mode
Hydraulic Cylinder Travel Distance
  • 0 ~ 20 mm
Working Stage Size
  • 108 mm Dia.
Working Space Size
  • 135 mm L x 135 mm W x 140 mm H
Protection Cover
  • Transparent plastic door for safety
  • Note: Must close the protection door and the pressure releases valve before pressing
Dimensions of Machine
&Working Space
        380 mm L x 180 mm W x 350 mm H
Net Weight
  • 66kg
Shipping Weight & Dimensions
  • 200 lbs
  • 40"x30"x30"
Pressing Dies
  • Pressing dies with various diameters are available (Click the picture below to order)
  • The pressing machine was quality inspected in the US. Lifetime support is provided
  • One year limited standard warranty (Extended warranty is available up to 5 years at extra cost)
  • CE Certified
  • NRTL or CSA Certification is available upon request at extra cost
Application Notes
  • Check the Oil Level regularly using the included oil dipstick. Add AW 46 Hydraulic Oil if the Oil Level when low.
  • The pressing die cannot be used for pressing powder with the particle size < 30 microns. Small particles may slip into the gap between the pressing rod and the sleeve, and cause damages to the sleeve during the compression. Ball mill and sieve the powder with 200 - 450 mesh (30 ~ 80 microns). Apply only the power within this range to avoid the damages. Please consider using the 3'' Dia. Sieve Set No.200&450 Mesh (Click the picture below to order) to separate the 30 ~ 80 microns particles from the powder clumps. Please clean the mold using ethanol after each use
  •              SieveBrass.jpg
  • Do not raise the bottom cylinder (piston) more than it's maximum traveling distance. (20 mm)
  • Caution: Operator must always wear protective goggles during operation!
  • Operating the press inside a glove box is not recommended
