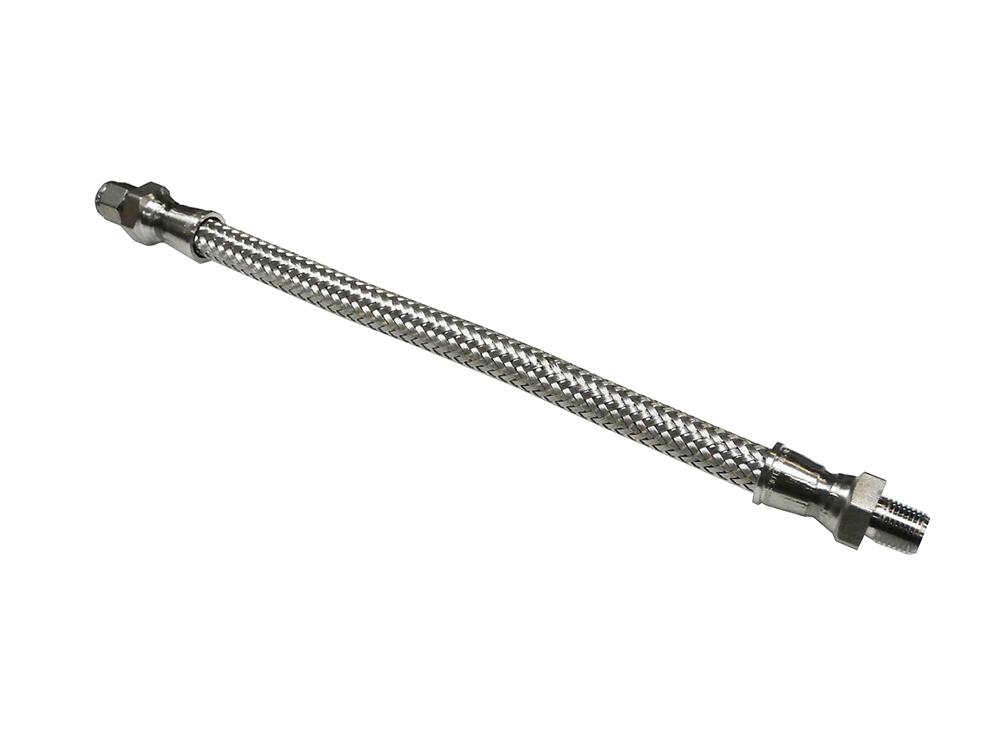

316 L SS 1/4" Swagelok Flexible Hose with 1/4" NPT Male Connector - EQ-SWA-Hose-1-LD
Description
Description
A flexible stainless steel hose connects the SS pipe of the gas tank to the gas inlet on the flange of the furnace.
Specification
| Hose Length | 12" or 36" (Please select from the options bar) |
| Hose Series | 316L SS Core/316 SS Braid |
| Hose Size | 1/4" |
| End Connection 1 Size | 1/4" |
| End Connection 1 Type | Fractional Swagelok® tube |
| End Connection 2 Size | 1/4" |
| End Connection 2 Type | Male NPT |
| End Connection Material | Stainless Steel |
| Max. Temperature Pressure Rating | 1736 psig (119 bar) |
| Min. Temperature | -325°F (-198°C) |
| Max. Temperature | 850°F (454°C) |
| Room Temperature Pressure Rating | 3100 psig (213 bar) |
