3mm Width Aluminum Tab as Positive Terminal for Pouch Li-ion Cell 40pcs/Box - EQ-PLiB-ATC3

0.0/5 rating (0 votes)

Description

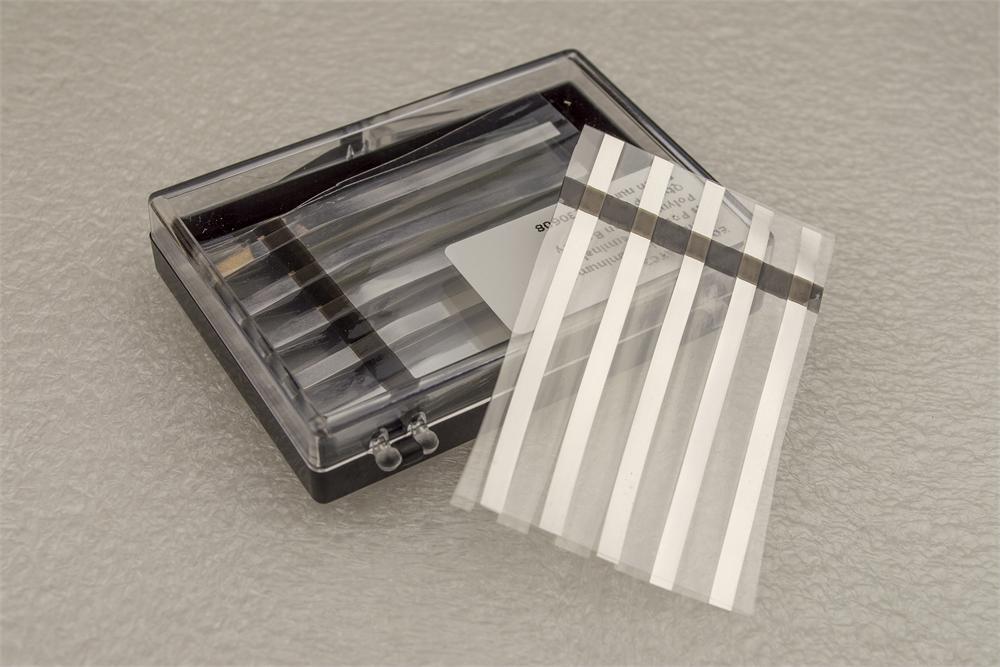

Aluminum Tabs with 3mm width, for use as the Positive Terminal of Polymer Li-ion Batteries    40pcs/Box   Specification

Material Aluminum 99.99%
Length 61mm
Width 3mm
Thickness 0.09mm
Max. Loading Current 3A
Net Weight 46mg/pcs
Gross Wight 13.09g (Tabs with Box)
Application 1. Connect to cathode current collector as polymer battery positive terminal
2. Suggested Sealing Method: (parameter below may vary from case to case)
    - Soft type heat-sealing blade (Blade with rubber, see MSK-140)
    - 180-200C for upper blade
    - 160-180C for lower blade
    - 40PSI (0.3Mpa)
    - 3 seconds heating time
Adhesive Polymer Tape on the tab allows for immediate hot sealing

 Manual & Video
 polymer battery with tabs VIDEO on how to weld the tab VIDEO on how to seal the battery w/ tab
