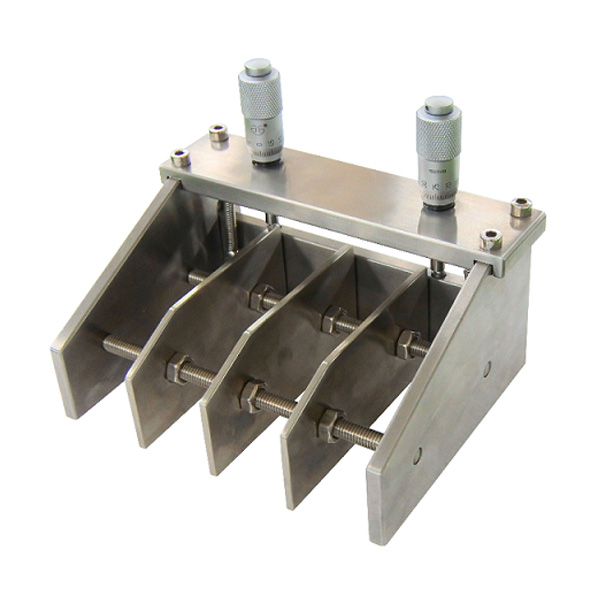

4 Paths Film Applicator ( 4 x 25 mm Width) for Hi-Throughput Multi-Composition Coating - EQ-Se-KTQ-4-25

0.0/5 rating (0 votes)

Description



EQ-Se-KTQ-4-25 is  4 strips thickness adjustable film applicator with 25 mm width each strip.  It is designed to coat multi-composition material in one time with high throughput.     The operator sets the blade clearance by adjusting the micrometers. This is an excellent tool to explore a new generation of material for ceramic or battery electrodes.

SPECIFICATIONS:

Features
  • 130 mm standard width
  • 4 strip spacer with 25 mm width at each.
  • Make wet film thickness between 0 - 3500 microns
  • The micrometer head's controllable accuracy is  10 microns
  • Made of SS304 stainless steel
Structure & Dimension
Optional
  • Digital micrometers is available upon request for better accuracy
  • You may choose this option at the " product option" bar at the extra cost
Digital Micrometer
Specifications
  • Digital Micrometer Head 1" Travel
  • Reads to 0.001 mm (50 millionths of an inch)
  • 0.003 mm accuracy
  • Instant inch/millimeter conversion
Application Notes
  • You may order the tope casting coater with > = 200 mm width vaccum bed for this film applicator (click Pic below left to order )
  • Replacement springs are available for future maintenance, please click on the picture below to order
  •
Video Please click the first video to see how film applicator works on MTI's film coater , please click the second video for the coating quality of the film applicator.
