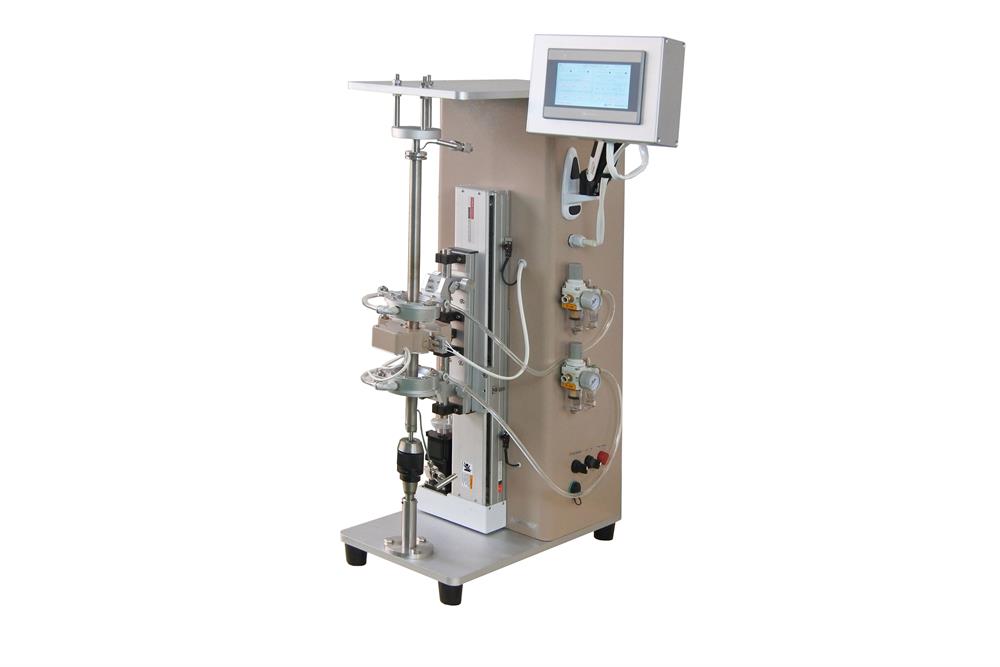

400C Max. Zone Melting Furnace for Directional Solidification and Purification - OTF-1000XCBZ-AB

OTF-1000XCBZ-AB is a 400°C Max zone melting system that is equipped with a touch screen for ease of control. Such a system is widely used for metallic material directional solidification, purification, and single crystal growth.

Specifications:

Feature	Vacuum/Atmosphere protective environment for samples. Maximum travel distance: 450 mm.  Single heating element for a maximum temperature gradient. Adjustable temperature gradient for versatile materials. (~50°C/cm) Moving/Pulling Speed: 0 - 55mm/Hr adjustable. Ideal for low-melting-point material directional solidification, purification, and single crystal growth.
Heating Module	The Heating Module is made of a resistance wire ring heater, one RTD sensor for temperature control, two extra RTD sensors for temperature monitoring, two cooling air knives. The positions of air knives are adjustable.  Max. working temperature is 400ºC The ID of the ring heater is 32 mm The heating zone length is 40 mm The heating module is fixed on a linear module to achieve accurate verticle movement. The spare heating module is available upon request at the extra cost
Power	AC 220 V, Single Phase, 50/60Hz 2 kW
Control Panel	Touch Screen, User-Friendly Parameters: Travel, distance, speed.  Max Travel Distance: 450mm. Travel Speed: 0 - 55 mm/hr Acuracy of position detection: 0.001mm
Working Temperature	Fe-Cr-Al Resistance Heating with resistance heating Maximum Working Temperature: 400°C ( <1hr) Constant heating temperature: 300ºC Ramping Rate: 10°C/ Min Temperature Accuracy: +/- 1°C
Tube and Flange	24mm O.D., 20mm I.D. SS 304 tube  (Quartz tube is available upon request) Top and Bottom stainless steel flange with the 1/8" gas ports The quartz tube is available upon request.  Sample rotation is available upon request.
Zone Melting Mechanism	Zone melting or directional solidification is by moving the ring heater in a vacuum-sealed tube. Moving speed: 0 - 55 mm/hour  The travel distance: 0 - 450 mm Servo motor controlled
Vacuum Pump (Not included)	10-2 torr via dual-stage mechanical vacuum pump (bottom right picture) 10-5 torr via Turbopump (bottom left picture) The vacuum pump is optional. Please click here to choose a vacuum pump.
Compliance	CE certified NRTL certification is available upon request at the extra cost
Warranty	One Year limited warranty with lifetime support
Dimension	750 mm (L) x 700 mm (W) x 1200 mm
Net Weight	80 kg 177 lbs
Demonstration Video
Application note	In order to zone melting for metallic materials, you may make a solid rod sample from powder before zone melting via CIP as the link below Please review the article “Broad temperature plateau for high ZTs in heavily doped p-type SnSe single crystals " published in  Energy＆Environmental Science for reference
