  6. 40T Lab Press with Programmable Electric Hydraulic Pump - YLJ-40TA-PE

Categories

Polishing Machines | Replacement Parts

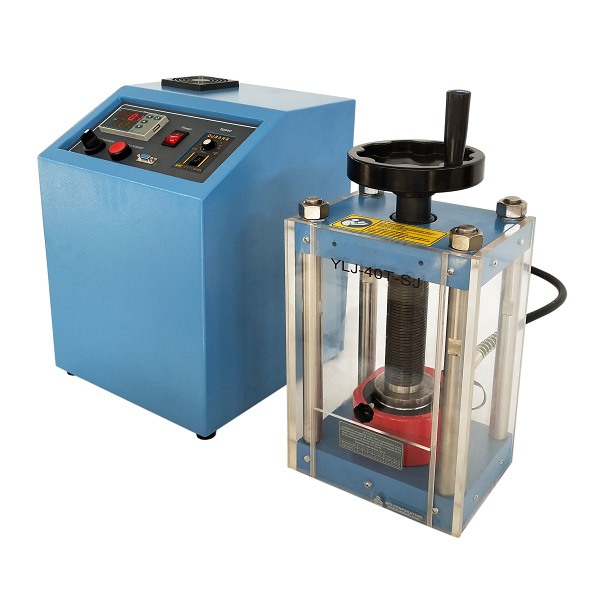

40T Lab Press with Programmable Electric Hydraulic Pump - YLJ-40TA-PE

0.0/5 rating (0 votes)

Description



Specifications:
Programmable
Electric Hydraulic Pump
  • 208-240VAC, 50/60Hz (110V version is available via 500W transformer)
  • 180 W AC motor
  • Built-in digital pressure controller, which is 30 segments programmable to set up multi-pressure and dwell time during raising pressure. (Pressure settings have to be monotonically increasing. Multi-step pressure relief is not allowed.)
  • One pump speed controller is built in to adjust pump speed
  • One KF40 feed-through installed on the pipe, which allows the pipe is inserted into a glovebox and connect to press machine
  • RS485 port is built-in on the control panel for PC operation.
  • PC software based on Labview is available upon request at the extra cost.  ( You must inform us in advance if you need PC operation, and suggest you buy a laptop from us for pre-test )

   Max. Pressure
  • 40 Metric Ton for pressing machine
  • 45 MPa for the electric pump
  • The transparent protection cover is built in the front of the pressing machine
Hydraulic Oil
  • AW32, 1.5 L
Hydraulic Hose
  • ZG3/8, 1 meter long
Optional KF-40 feedthrough
  • 3 meters long hydraulic hose with a KF40 feedthrough flange is optional which allows the machine to work inside the glove box.
Bottom Hydraulic Cylinder Travel Distance
  • 0 - 16 mm
Top Support Screw Adjustable Height
  • 170 mm
Hydraulic Cylinder Diameter
  • 80 mm
Max. Working Space
  • 80 mm Dia. x 170mm H
Gauge Pressure Value to Force Conversion

Pressure Display on the gauge (MPa)

5.6

11.4

17.0

22.8

28.4

34

39.8

45.4

Force on Hydraulic Cylinder (T)

5

10

15

20

25

30

35

40
  P = T x g x 10/ (πr^2)
    • P: pressure (Mpa) applied to your working piece
    • T: force (metric ton) applied to the pressure vessel cylinder
    • g: standard gravity. g ≈ 9.8 m/s2
    • π: ~3.14
    • r: radius (cm) of the pressure vessel (1.5 cm)
    • *1000 Kg = 1 Metric Ton; 1 Mpa = 10 Kg/cm2
 Pressure Accuracy
  • ±0.5MPa  in high pumping  speed    ±0.1 MPa  in low pumping speed
Operation Temperature
  • 10 - 40°C
Overall Dimension
Pressing Die (Optional)        Pressing dies with various diameters are available upon request at an extra cost

Net Weight
  • 100 kg
Shipping Weight & Dimension
  • 260 lbs; 48"x40"x40"
Compliance
  • CE Certified
Warranty
  • The pressing machine was quality inspected in the USA, lifetime support is provided
  • One year limited standard warranty (Extended warranty is available up to 5 years at an extra cost)
Operation Video and Instructions

Application Notes
  • The pressing die cannot be used for pressing powder with a particle size < 30 microns. Small particles may slip into the gap between pushing rod and steel sleeve and cause damages to the sleeve during the compression. Ball mill and sieve the powder and apply only the 32~75 microns powder to the pressing die to avoid the damages. Please consider using the 3'' Dia. Sieve Set No.200&450 Mesh to separate the 32~75 microns particles from the powder clumps. Please clean the mold via ethanol after the completion of each experiment
  • Do not raise the bottom cylinder (piston) more than its maximum traveling distance (25 mm)
  • The press can be put in a glovebox

  • Warning: Customers must always wear protective goggles during operation !!!
Packing List:
  Name Qty
1 Main machine (40T hydraulic pressing machine) with electronic hydraulic pump 1 unit
2 Allen Hex Wrench 1 set
4 Manual CD 1 pc
