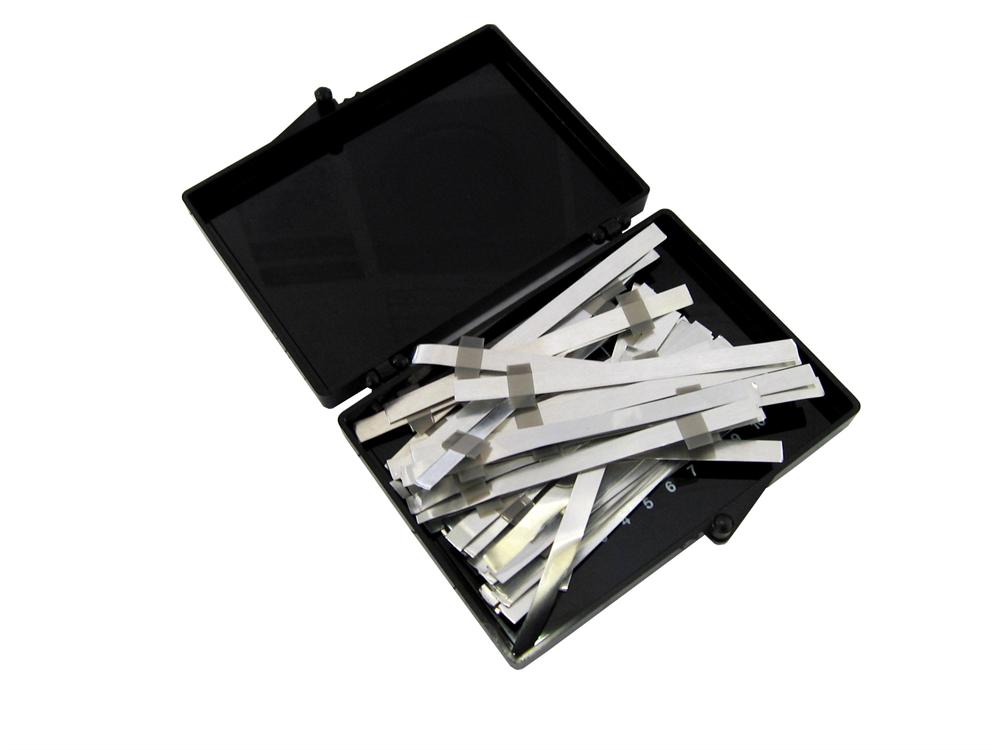

4mm width Aluminum Tab with Adhesive Polymer Tape for Positive Terminal of Pouch Cell, 50pcs/Box - EQ-PLiB-ATC4

0.0/5 rating (0 votes)

Description

Specification

Material Aluminum 99.99%
Length 61mm
Width 4mm
Thickness 0.09mm in Aluminum Tab
0.28mm in Aluminum Tab with Adhesive Polymer Tape
Max. Loading Current 3A
Net Weight 60mg/pcs
Gross Wight 15g (Tabs with Box)
Pre-taped Adhesive Polymer Tape on the tab allows for immediate hot sealing
Height of Tape Area: 4.30 mm +/- 0.50 mm
Application 1. Connect to cathode current collector as polymer battery positive terminal
2. Suggested Sealing Method: (parameter below may vary from case to case)
    - Soft type heat-sealing blade (Blade with rubber, see MSK-140)
    - 180-200C for upper blade
    - 160-180C for lower blade
    - 40PSI (0.3Mpa)
    - 3 seconds heating time
Adhesive Polymer Tape on the tab allows for immediate hot sealing

Manual & Video
polymer battery with tabs VIDEO on how to weld the tab VIDEO on how to seal the battery w/ tab
