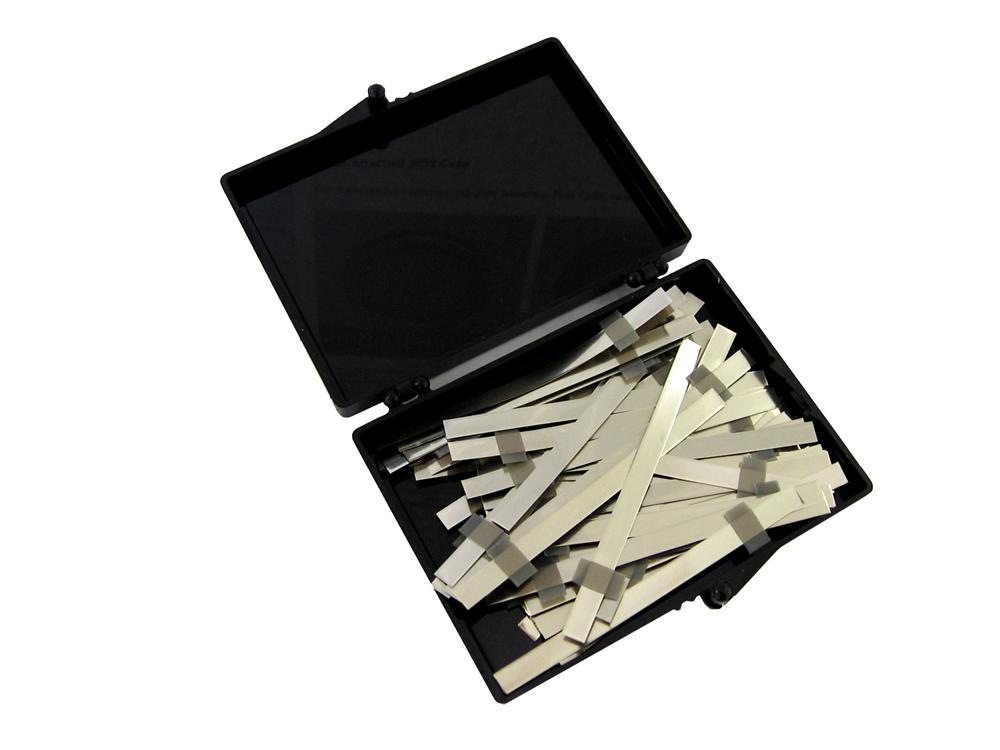

4mm Width Nickel Tab with Adhesive Polymer Tape as Negative Terminal for Pouch Cell, 50pcs/Box - EQ-PLiB-NTA4

0.0/5 rating (0 votes)

Description

4mm Wide Nickel Tabs for use as the Negative Terminal of Polymer Li-ion Batteries    50pcs/Box Specification

Material	Nickel 99.99% Adhesive Polymer Tape on the tab allows for immediate hot sealing
Length	61mm
Width	4mm
Thickness	0.09mm in Nickel Tab
	0.28mm in Nickel Tab with Adhesive Polymer Tape
Max. Loading Current	3A
Package	50 pcs/box
Net Weight	160mg/pcs
Gross Wight	18g (Tabs with Box)
Application	1. Connect to cathode current collector as polymer battery positive terminal 2. Suggested Sealing Method: (parameter below may vary from case to case)             - Soft type heat-sealing blade (Blade with rubber, see MSK-140)            - 180-200C for upper blade            - 160-180C for lower blade            - 40PSI (0.3Mpa)            - 3 seconds heating time  Adhesive Polymer Tape on the tab allows for immediate hot sealing
Manual & Video	Pouch battery with tabs VIDEO on how to weld the tab VIDEO on how to seal the battery w/ tab
