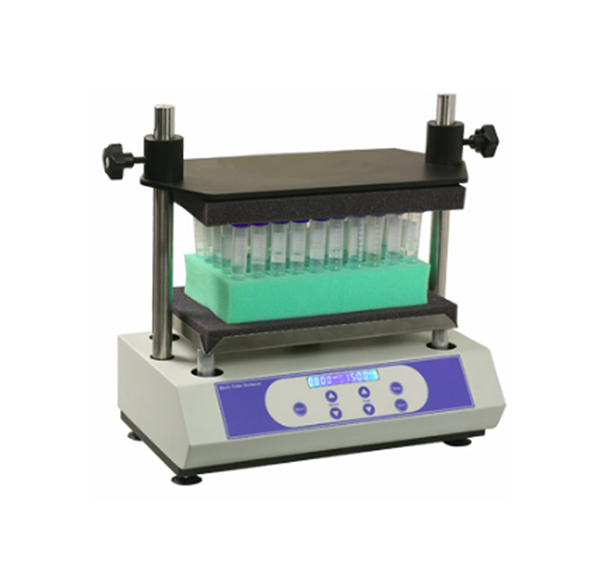

50 Cavities Vortex Vibration Ball Mill for High-Throughput Milling - MSK-SFM-50

0.0/5 rating (0 votes)


MSK-SFM-50  is a high throughput vortex-vibration ball mill that sets the performance standard for small quantity milling and mixing up to 50 samples for 15 ml tube, which takes place (often within 60 seconds) inside the disposable 5 ml screw-cap microtubes. The optimized mixing motion causes rapid milling through constant high-velocity impact from the hardened YSZ micro-beads.  It is excellent for material genome initiative research of ceramic compound. SPECIFICATIONS:

Working Voltage
  • 100 - 240V AC 50/60Hz for worldwide use
  • 60W ( 1.5A )
  • US Plug
LCD Control
  • LCD controller for setting speed and time
    • Speed range:  500-2500rpm
    • Cycle Time: 1min - 99h59min, or 1sec - 99min59sec
Max. Loading Capacity
  •  4.5 Kg Max.
Sample Holder & Tube
  • Standard plastic foam sample holder for 50 pcs 16 mm Dia x 115 mm L nylon tube
  • 50 pcs Nylon tubes  ( 16mm dia., ~ 15 ml) are included for immediate use
  • A spare sample holder with various size cavity is available upon request
  • Tube Holder Holder P/N Tube Qty & Diameter Tune Holder Size(mm)
    MTV-B01 50x¢10mm 245x132x45
    MTV-B02 50x¢12mm 245x132x45
    MTV-B04 50x¢16mm 245x132x45
    MTV-B05 15x¢25mm 245x132x45
    MTV-B06 15x¢29mm 245x132x45
    MTV-B00 Spare holder 305x178.5x25
Optional containers
Click here to see a video
  • This vibrating device also can clamp a single cor multi container for mixing and milling. Click Pic. 1-2  to order a container
  • A heated container with temperature control is available upon request ( Pic. 3)
Pic. 1          Pic. 2     Pic. 3
Grinding media
  • To achieve better milling and mixing, you may consider putting zirconia milling balls into the microtube
  • Milling balls: Ø 5 mm, Ø 1.0 mm; Ø 1.5 mm; Ø 3.0 mm
  • Various size zirconia milling balls are available to order at MTI for ball milling with microtube. Click the left picture to order
  • 426x250x480mm
Net Weight
  • 55 lbs / 25kg
Warranty Two years limited warranty with lifetime technical support
Operation Video
