500°C Convection Oven (13"x18"x18", 67 Liter ) with Programmable Temperature Controller - KSL-500X-71

0.0/5 rating (0 votes)

Description

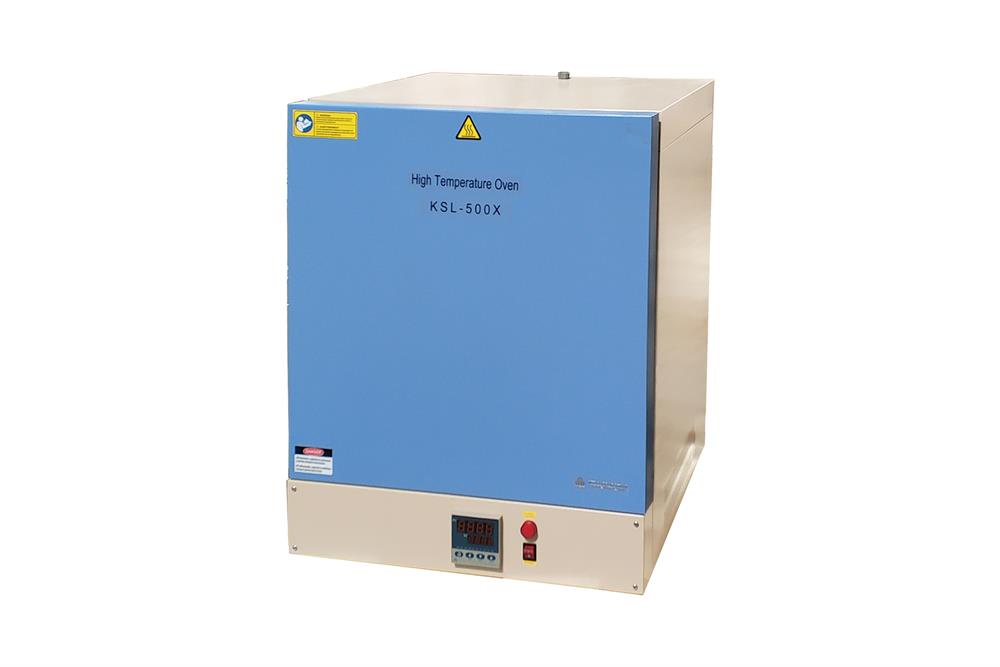

KSL-500X-71 is a 500°C Oven that combines forced-air circulation and programmable temperature controller to achieve a uniform furnace for a variety of laboratory applications like drying, storing, annealing. It is cost-effective for heating equipment of material R&D laboratories.
Note: MTI performs test runs prior to shipment to ensure the quality of the oven, as a result, the oven chamber will come with a slight brown tint indicating the furnace has been heated up to a high temperature once. SPECIFICATIONS:
Working Voltage 208-240V AC, Single Phase, 50/60Hz
6" L Power cable is included, but no plug.  Please install the plug by yourselves or order a plug at the link below based on your lab power panel
Max. Power Consumption 2200W  ( 15A break required )
Max. Operating Temperature 500°C for < 30 minutes
Continuous Working Temperature 0~400°C
Max. Heating Rate
  • 7°C/min (0~300°C);
  • 4°C/min (300~400°C);
  • 0.5°C/min  ( 400 - 500°C)
Temperature Uniformity ± 2°C
Temperature Controller
  • 30 segments programmable digital temperature controller with +/- 1°C accuracy
  • PID auto-tune function
  • Over-temperature and thermal couple break protection
  • PC control software and module are available at extra cost
Chamber
  • Interior Material: Stainless Steel and Fibrous Refractory Shell
  • Dimensions: 335mm (L) x 450mm (W) x 450mm (H)
  • Volume: 67L
  • Note: chamber color is yellow because testing in air before shipping
Thermocouple Type K type included
Sensor Overheat protection sensor automatically cuts power if over-heated
Shelves 2 stainless steel shelves were included for immediate use
Product Dimensions Oven: 700mm(L) x 620mm(W) x 1015mm(H)
Chamber: 335mm (L) x 450mm (W) x 450mm (H)
Compliance
http://www.mtixtl.com/images/products/thumb/TUVSN.png" alt="" width="52" height="31" style="border: 0px;" title="Click to enlarge" />
CE Certificate
NRTL or CSA Certificate is available upon request at extra cost.
Warranty One Year limited warranty with lifetime support (except for consumable O-rings)
Operation Demo Video
Net Weight 155 kg (342 lbs)
Shipping Weight 500 lbs
Shipping Dimensions 48"(L) x 40"(W) x 50"(H)
