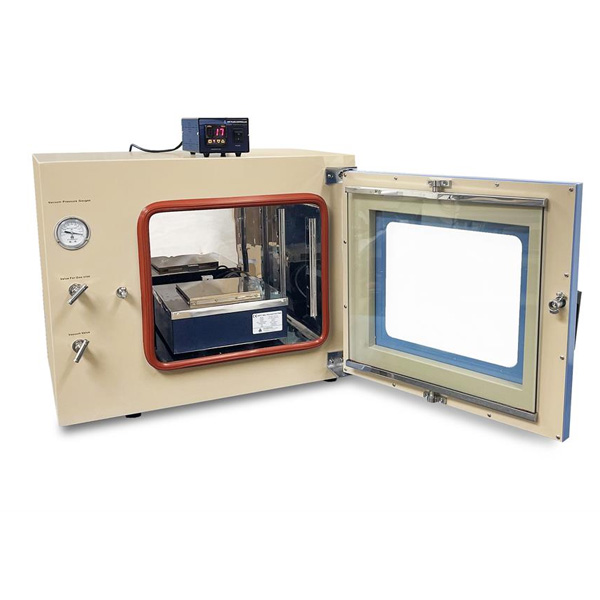

500ºC Max Vacuum Hot Plate (180x180 mm) w/ Digital Temperature Control - VC-HP-1818

0.0/5 rating (0 votes)


VC-HP-1818 is a vacuumable hot plate  ( 180x180mm area) up to 500oC with precision temperature control to treat air- sensitive sample under vacuum or inert gas environmental.


Heating Plate
Chamber Structure

  • Made of polished 304 Stainless steel sheet
  • Inside:  16x13x14" (420×370×350, mm )
  • High strength glass as the front door for easy observation
  • One KFD25 Adaptor is built in the chamber ( click picture left to see ) to connect a vacuum pump
  • Two stainless steel valve is built-in front panel for controlling gas inlet and outlet
  • Mechanical vacuum gauge built-in front panel with an indication
Vacuum Level
  • The vacuum level is dependent on the vacuum pump
    • Max. vacuum pressure -  10E-4 -torr )by turbopump
    • Max. vacuum pressure -0.1 Mpa  ( 《 50 m-torr )by a mechanical pump
    • Max. positive pressure  0.15 Mp
  • Please click the picture left to order a vacuum pump with KF25 SS bellow and valve.
Overall Dimensions 686 H × 559 W x 584 H mm (27'x22"x23")
Net Weight 125 Lbs
Shipping Dimension 48" x 40" x 35"
Shipping Weight 290 lbs
Compliance CE certified
NRTL or CSA certification is available upon request at the extra cost.
Warranty Two-year warranty with lifetime support
