500C Max. Precision Hot Plate (180 x 180 mm ) - EQ-HP-1515-LD

0.0/5 rating (0 votes)

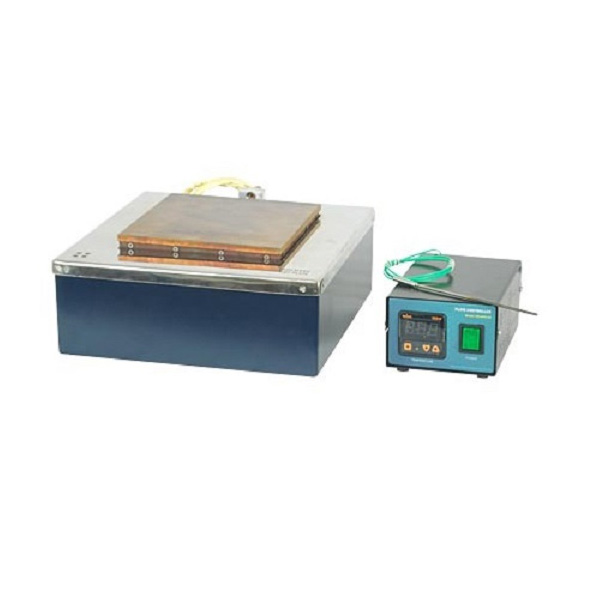

Hot Plate features a rugged copper surface which provides uniform heat distribution and resists spills and corrosion. The controller, which is placed remotely, facilitates microprocessor-controlled feedback which maintains consistent, repeatable temperature settings which are ideal for repetitive procedures. Temperature can be adjusted from ambient temperature to up to 500°C. K-type thermocouple temperature sensor is included in the hot plate for accurate temperature measurements.


 Model  EQ-HP-1515-LD
 Power supply AC 220V, 50-60 Hz  (can be used under 110V with a transformer, please purchase the transformer at an extra cost )
 Power 1500 W
 Max. Temperature 500°C
 Temperature Accuracy 0.25% of FS ±1°C
 Heating Area

180 x 180mm, copper plate

 Dimensions 325Lx 285 Wx 126 H, mm (without the controller)
 Net Weight: 30 lbs (14 kg)
Shipping Weight 45 lbs
Shipping Dimensions 22"x16"x13"
  • IC digital temperature control from RT  - 500 oC.
  • Extra flat surface and ideal for flat substrate wax mounting during polishing.
  • Excellent for heating materials at a uniform temperature.
  • The copper surface provides uniform heat distribution and resists spills and corrosion
  • Heavy duty structure with one year warranty.
  • CE certified
  • NRTL or CSA certification is available (UL61010)n at extra cost.
