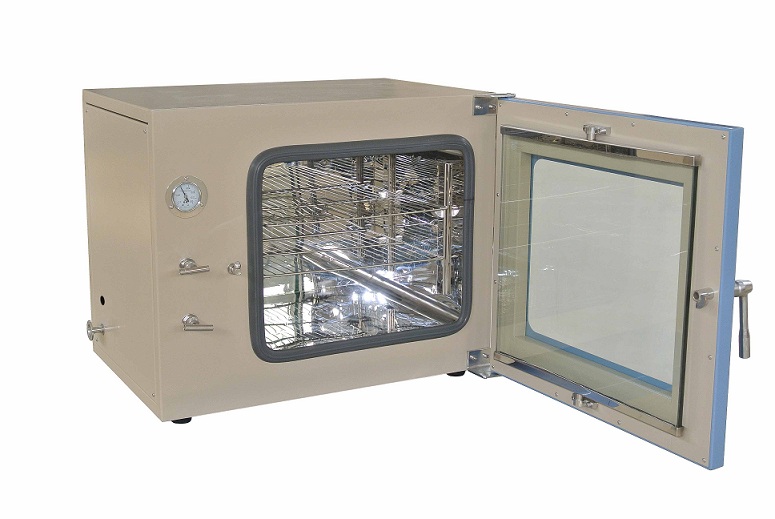

53L Stainless Steel Vacuum Chamber for Sample Storage (16x13x14") - SVC-6050-LD

0.0/5 rating (0 votes)


SVC-6050 is a stainless steel vacuum chamber for storing various materials and microelectronic samples that are sensitive to air. A vacuum gauge is built in for easy monitoring of the vacuum level.


  • 53 liter 304 stainless steel chamber ( 16x13x14" )  provides a vacuum environment for degassing, plastics curing, chemical processing, moisture removal, and a host of other operations
  • Reach vacuums to  < 50 m-torr by   Heavy Duty Double Stage Rotary Vane Vacuum Pump
  • Double-wall stainless steel construction provides durability and safely stores corrosive the chemical and less leaking rate
  • Dual needle valves allow the simple, controlled application of negative pressure and safe bleeding
  • KFD25 standard vacuum port to make connect a vacuum pump quickly
  • One electric strip built-in chamber allows using electricity inside the chamber.
Chamber Structure
  • Made of polished 304 Stainless steel sheet
  • Inside:  16x13x14" (420×370×350, mm )
  • 53-liter capacity
  • Two shelves are included and removable
  • High strength glass as the front door for easy observation
Vacuum & Gas Ports
  • One KFD25 Adaptor is built in the chamber ( click picture left to see ) for connecting to the vacuum pump
  • One Power cable Port  with a dead plate for inserting some devices such as humidity detector, or  heating plate  to the chamber
  • One pair of gas inlet & out port for gas flow
  • Require a vacuum pump with KFD25 Bellow pipe, please click pictures left to order separately
Pressure Gauge
  • Mechanical vacuum gauge built-in front panel with an indication
    • Max. vacuum pressure -  10E-4 -torr )by turbopump
    • Max. vacuum pressure -0.1 Mpa  ( 《 50 m-torr )by a mechanical pump
    • Max. positive pressure  0.15 Mp
Gas Ports & Valves
  • Two stainless steel valve is built-in front panel for controlling gas inlet and outlet
  • electric PortTwo 1/4" Swagelok female gas ports are installed in the back to connect to gasses
  • Inert gas can be filled inside the chamber and keep the gas flow
Electric Ports
  • One 4 pins vacuum-tight Aviation Power Connector is built inside the chamber, which allows using some electric devices inside the vacuum chamber
  • Please order option 3 Pin Aviation Power Connector with cable for supplying power to the inside of the chamber.
  • Please click the picture to order option 4 Pin Aviation Power Capacity of Current: 5A max on 110-240V / 20A max on 12V,  Dimension: 13 /18mm x 69mm
Option of Vacuum Hot-plate
  • You may modify the chamber into a vacuum hot plate with stirring
  • Please click the picture below to order a hot plate, we will help you to make a connection
Overall Dimensions 686 H × 559 W x 584 H mm (27'x22"x23")
Net Weight 125 Lbs
Shipping Dimension 48" x 40" x 35"
Shipping Weight 290 lbs
Warranty Two-year warranty with lifetime support
