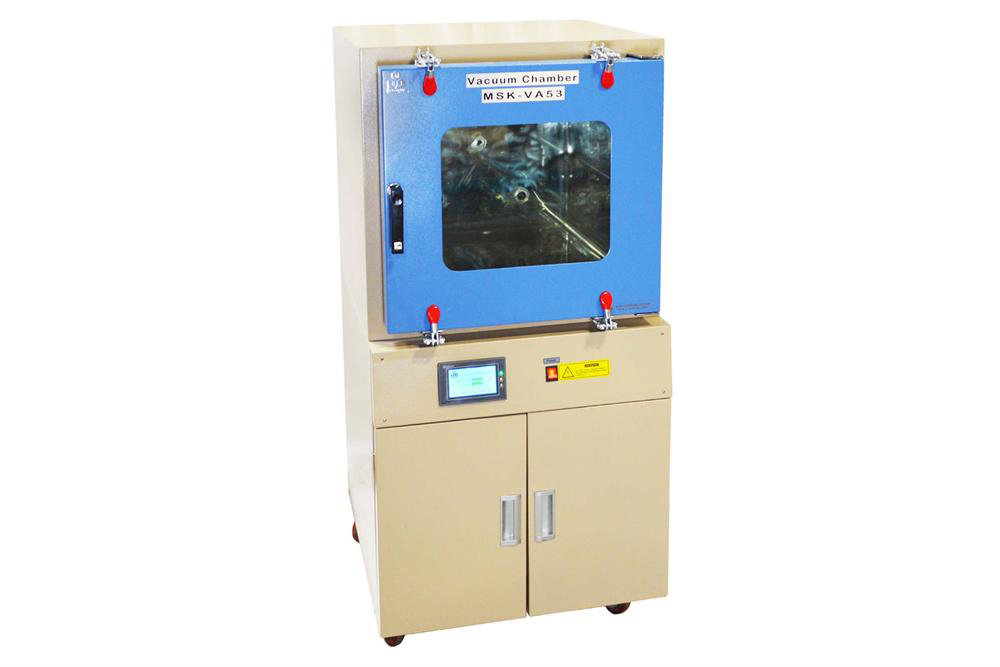

53L Vacuum Chamber (16x13x14") with Digital Pressure Control for Altitude Simulation (UN - MSK-VA53

0.0/5 rating (0 votes)


MSK--VA53 has a 53 L capacity larger vacuum chamber with built-in vacuum pump and control system designed for Battery Altitude Simulation Test based on UN38.3 standard  (    Also, it can be used as vacuum storage chamber with automatic control of vacuum pressure and no vacuum leaking.
Please click here to review the UN38.3 Li-Ion Battery Transportation Safety Testing Requirements
220VAC, 50/60Hz,
110VAC available upon request
Max Power: 0.5KW
  • Heavy duty and explosion-proof stainless steel structure
  • Inside dimensions:
    • Size:                 415 mm x 345 mm x 370 mm    ( 16.3 x 13.5 x 14.5")
    • Capacity:          53 liter
  • Outside size:           621 x 690 x 1280mm
  • Working temperature:   Room Temp. without heating
  • Ideal explosion-proof box with four Latch-Action Toggle Clamps for the high power rechargeable battery testing
  • Max. Vacuum:      0.2 Kpa ( 1.5 Torr)  by built in Mechanical pump
  • Click here to see vacuum pressure conversion.
Pressure Control
  • The pressure control system monitors and controls the chamber pressure. The pressure setpoint and holding time are user-defined (default 11.6kpa for 6 hrs).
  • 4.3" Touch-screen PLC panel to control & display pressure and running time automatically.
  • Optional:  ( at extra cost )
    • Can add pressure setting programmable function up to 9 segments according to the request.
    • Can add  heating programmable  function up to temperature of 250°C
Warranty   One-year limited warranty with lifetime support
  • CE Certified
  • The oven is ready to pass TUV(UL61010) or CSA certification at extra cost.
Attention Note Please be aware that the welding joints inside the chamber are ground in order to smooth out the surface, however, they are not mirror-polished.
Operation Manual
Shipping Weight & Dimensions 435 lbs, 47'x39"x63"
