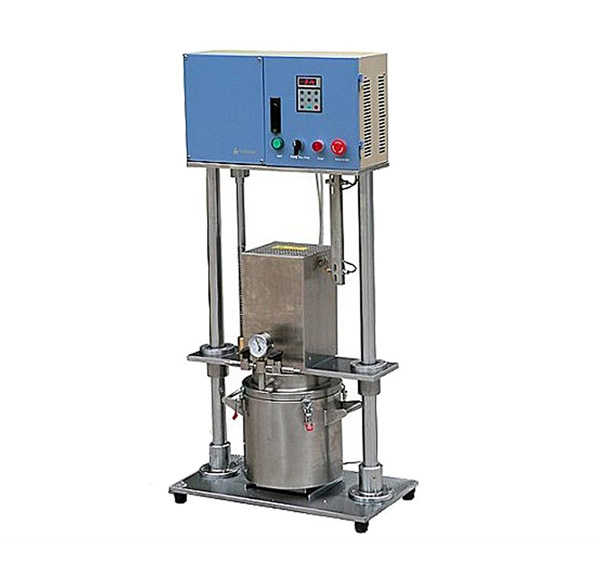

5L Electric Vacuum Mixer with Single Axis Helical Blade and Water Cold Tank - MSK-SFM-6E

5L Electric Vacuum Mixer with Single Axis Helical Blade and Water Cold Tank - MSK-SFM-6E

0.0/5 rating (0 votes)


. It is programmable in speed, time, and rotational direction, and has a stainless steel mixing tank implemented with water cooling to maintain an efficient mixing process.
This instrument is excellent for preparing LiCoO3, LiFePO4, Phosphor, and various ceramic slurries where gas bubbles must be kept at a minimum. The reduction of gas bubbles will result in better dispersion and uniformity of the processed materials.
  • 5-liter, 304 stainless steel container with a dual-layer water cooling jacket.
  • An advanced sealing mechanism helps maintain vacuum pressure for up to 12 hours.
  • The container is opened and closed by an electric motor; the need for an additional pneumatically driven device is eliminated from this operation.
  • Programmable controller for adjusting the time, speed, and rotational direction settings.
Input Power Requirements
Motor Output 750 W ( 1 Hp)
Rotor Rod Speed 0 -1400 RPM variable
Mixing Blade Speed 10 - 110 RPM adjustable
Lifting Mechanism Electric motor (no air compressor or pump needed )
Container & Blades
  • Three different mixing blades are included for immediate use:
    1. Helical Mixing Blade (120mm H x160 mm Dia.)
    2. Propeller Mixing Blade
    3. Turbine Mixing Blade
  • Mechanical Pressure Gauge and two 1/4'' gas inlet and outlet on the front for connection of gas source(s) - please click the last picture from above for details
  • Container capacity: 5 Liter.
  • Warning: MSK-SFM-6E is suitable for wet blending and mixing only is not suggested for dry mixing.
Options Water Cooling & Heating
  • 16 L/min water flow is required to cool mixing tank
  • 1/4'' water cooling inlet and outlet - connected to built-in cooling jacket - on the back of the mixing tank for water hose connection   (please click the first picture from the left for details)
  • A recirculating water chiller is recommended for saving water (not included)
  • Heatable container w/ temperature controller is available upon request at an extra cost up to 200C
Vacuum Pump (Optional)
304SS Container Size 270mm O.D. x 210mm I.D. x 230mm H
Instrument Dimensions   580mm(L) x 320mm(W) x 1340mm(H)
Shipping Dimensions 700mm(L) x 600mm(W) x 1500mm(H)
Net Weight 119 kg (262 lbs)
Shipping Weight 140 kg (310 lbs)
Compliance CE Certified
NRTL or CSA  certification is available upon request at extra cost
  • One year limited warranty with lifetime support
  • Rusting and damage due to improper storage and maintenance is not covered by warranty
