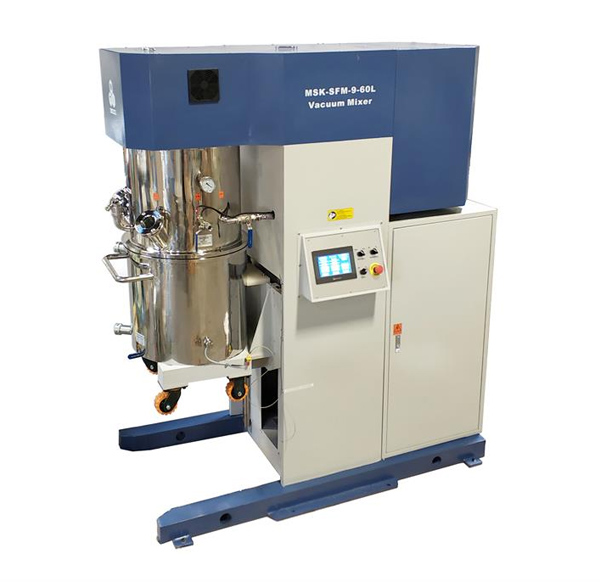

60 Liter Planetary Vacuum Mixer with Vacuum Pump and Water Chiller - MSK-SFM-60L

0.0/5 rating (0 votes)


MSK-SFM-60L is a large Vacuum Planetary Mixer with effective 60-liter containers. The vacuum mixer produces multi-movements during stirring, including, revolution and rotation, double stirring shafts, single scattered shaft & scraping the walls to make slurry gas-bubble free and with extreme uniformity under vacuum.A temperature-controlled liquid chiller is included to liquid cool the stainless steel mixing tank for high efficiency in mixing.  SFM-60L is excellent for preparing LiCoO3, LiFePO4, phosphors and ceramic slurry with excellent results in dispersion and uniformity.

Power Input
  • 220VAC 50/60Hz, Three-phases
  • Total power: 16 kW
  • The power plug is not included.
Rotating Speeds
  • Stirring speed: 0 - 80 rpm, motor: 6.3 kW
  • Dispersing speed: 0 - 3400 rpm, motor: 7.5 kW

  • The heavy-duty double stage vacuum pump: included
  • The vacuum level: ≦ -0.098MPa
  • Power: 750 W
Lift Motor Lifting Motor is a built-in ( 750W)
Mixing Barrel
  • Material: SS304
  • Dimensions: Dia.500mm x H.450mm
  • Nominal Capacity: 88 Liter
  • Effective Capacity:  60 Liter
  • Water cooling jacket
  • Temperature monitor and over-temperature alarm
Mixing Blades
  • Clearance between blades and bottom: 2-4 mm
  • Clearance between blades and barrel wall: 2-5mm
  • Clearance between two blades: 3-8mm
  • Made of SS304
Water Recirculating Chiller
One Digital Temperature Controlled Recirculating Water Chiller with 6 Liters Tank, 16L / min Flow - EQ-KJ5000 included

Connected Accessories & Fittings

  • DN100 feed hole
  • Three-piece type ball valve outlet
  • Two DN100 sight glasses
  • One G1/2" vacuum connector with the vacuum pump
  • One G1/2" air outlet
  • One vacuum meter
  • 12mm O.D. water inlet and outlet fittings


1900 x 1000 x 2100 mm (LxWxH)
  • One year limited warranty with lifetime technical support
  • Rust and damage due to improper storage conditions or lack of maintenance is not covered by warranty
Operation Instructions
                          From Mixing to Coating Flow Chart
Net Weight 1360 kg (3,000 lbs)
