600 ml PTFE Milling Jar with Liquid Nitrogen Cooling Jacket & Vacuum Insulation - LN-600

0.0/5 rating (0 votes)


LN-600 is special PTFE jar designed for milling material under extreme low temperature without iron contamination. The milling jar has 600 mL PTFE inner tank with liquid cooling jacket and vacuum insulation layer which allow the jar can be rotated under the temperature nearby LN.  It is innovative milling tool for grinding some materials which are too flexible or sensitive to be grinded at ambient temperature.

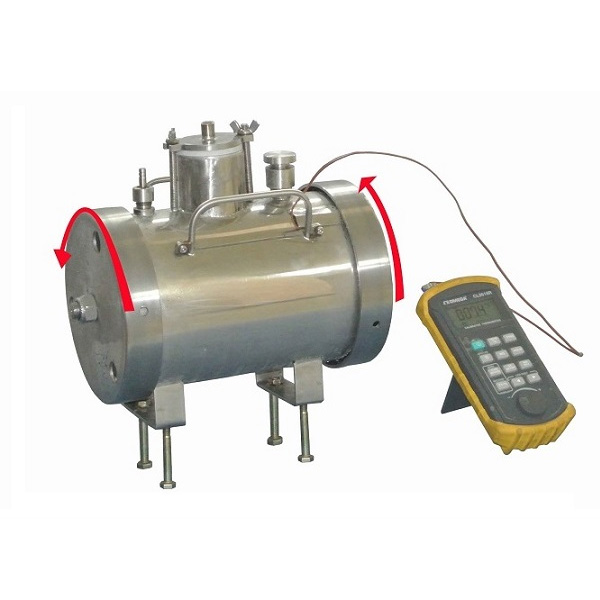

  • 600 ml  PTFE  jar  is located  inside the liquid N2 cold jacket and driven by two wheels (185mm Dia) on the two end of tank ( Picture below - left)
  • Liquid cold jacket is between inner jar and vacuum layer, which can contain 1.5-liter liquid nitrogen
  • Vacuum layer is built -in the outside tank
  • , which is for reducing thermal radiation
  • The over-pressure safety relief valve is installed on the tank for worry - free operation.  If vapor pressure inside the tank is > 3.7 atm ( 55 PSI),  the valve ( film type ) will be opened to release pressure.
  • The tank can be used for any conventional rolling mill as long as roller has 150 mm- 185 mm open spacing, which unmoved tank can be set in the center
Inner Jar Size
  • Inner Jar ( PTFE)  --    O.D 92mm x I.D 79 mm x Length 127 mm (638 ml)
  • Please review operation manual and video to learn how to install the inner jar
Milling Ball
  • One set oof YSZ milling ball is included for immediate use
  • Click the Picture below to see detail specs of the YSZ ball

Working Temperature
  • The T-type thermal couple is built inside the tank to monitor working temperature  ( temperature monitor is required, but not included
  • < -130°C without the heating gun
  •  -150°C Max.  with a mini heating gun ( you may need order two heating guns to avoid rotating frozen )
  • Please order a dual mini heating gun at an extra $500 if you really needed
  • The lowest working temperature is depended on the pre-cold condition and frequency adding LN- must pre-cold tank before use, and add LN during using
  • The Liquid nitrogen tank shall be operated under humidity < 48% environmental.  Higher humidity may cause rotating frozen
  • Weight:           10 Kg  ( 22 Lb )
  • Dimension:       270 L x 185 W x 320 H, mm
 ( Please   click the picture to see  )

Automatic temperature control system
  • You need a vacuum pump to minimize the pressure inside the tank to reduce heat loss.  You may click the picture below -right to order the double stage pump
  • You may need a temperature monitor to watch the working temperature, please click the picture below-center  to order one
  • You need a rolling mill which has 150 - 185 mm open spacing between two rollers to operate the tank.  Please click picture bottom right picture to order one if you don't have a roller mill.
  • You may need order a Liquid Nitrogen Tank to fill LN to the device automatically
  • We can add LN solenoid valve with temperature control to achieve automatic LN delivery with temperature control ( click picture at the left )
  • One year limited with lifetime support
Operation Instruction
Safety Warning:
  • Must wear glove and safety goggles when you fill liquid nitrogen into the tank
  • If you have no experience to handle liquid nitrogen, please read :    Safety Notes & Concerns and consulting MTI engineers.
  • MTI is not responsible for any damages/loss caused by ens users neglects
