8 Channel Battery Analyzer (0.6 -300 mA, upto 5V w/ Temperature & DCR Measurement - BST8-300-CST

8 Channel Battery Analyzer (0.6 -300 mA, upto 5V w/ Temperature & DCR Measurement - BST8-300-CST

0.0/5 rating (0 votes)

Description

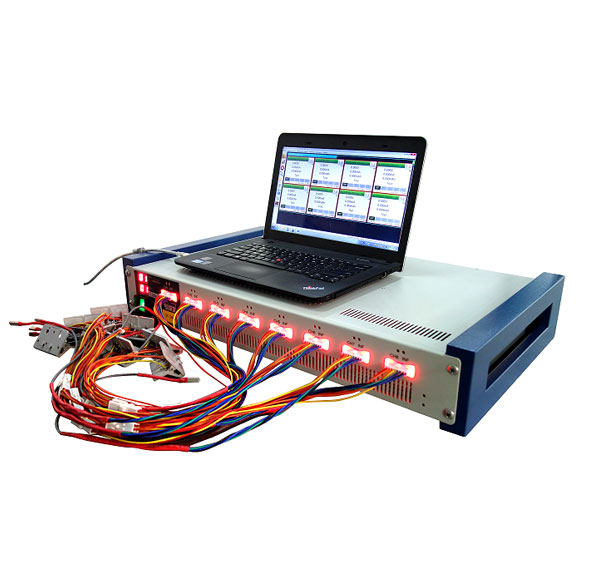

BST8-300-CST is an eight-channel battery analyzer for most applications in battery testing fields such as electrode materials research, battery performance & cycle test, small-scale battery formation, capacity grading, battery pack testing and etc. The purchase comes with a brand new laptop with Microsoft Windows with 30 days free trial Microsoft Excel and the latest version of controller software installed and calibrated for immediate use.
FEATURES

  • Extended testing current ranges from 0.6mA~300mA, up to 5V.
  • Benefits from the implementation of eight independent constant-current & voltage sources, each channel can function independently without interference with each other.
  • 16bit Bipolar ADC/DAC module enables the stable and accurate voltage sampling.
  • The dynamic loading protection function prevents the cell & device from damaging by the surge current.
  • Advanced DCR testing function filters out unqualified batteries ahead of time by detecting improper metal contact.
  • Battery temperature monitoring capability
  • Negative Voltage Indication LED

SPECIFICATIONS

Electricity Requirement

110VAC or 208~240VAC 50/60Hz (Please select the correct operating voltage in the options bar)

Power Consumption

300W max.

Current

  • Range: 0.6mA - 300mA programmable
  • Accuracy: ±(0.1% RD + 0.1% FS)
  • Resolution: 0.1mA

Voltage

  • Range: 1.0 - 5V programmable
  • Accuracy: ±(0.1% RD + 0.1% FS)
  • Resolution: 1mV
  • Voltage monitor possible when no testing process is running

Data Sampling

Time interval: 1 - 900s

Max. Measurement cycles

9999 cycles

Max. Program steps

9999 steps

Product Dimensions

668mm W x 400mm D x 90mm H

Channels & Test Modes

    Recipe Maker

  • Eight independent programmable channels. Each channel can work under different modes and functions independently
  • Working modes Include:
    • Charge: constant current charge (CC), constant voltage charge (CV), constant current constant voltage charge(CCCV)
    • Discharge: constant current discharge (CD), constant power discharge (CP)
    • Rest & cycles

Programs & Software

Real-Time Monitoring

  • The software is included to set various working modes for evaluating cell capacity and lifecycle for all types of rechargeable batteries
  • Limited threshold conditions include voltage, current, time, capacity, negative voltage slope, etc.
  • With real-time monitoring windows and integrated graph/data windows, the testing process can be observed more directly and efficiently.
  • During the test, the software will provide instructions and warnings for assistance.
  • MS Excel 2013 30 days free trial is pre-installed for the Excel data file output. (Note: Updated information on 5/21/2015)

Test Reports and Curves for Analysis

  • Various graphs and curves can be created by software based on user definition. (Voltage-time curve, current-time curve, capacity-voltage curve, loops times charge/discharge capacity curve, loops times charge/ discharge efficiency curve, etc)
  • Data reports are created by software in excel format. A copy of MS Excel must be installed in order to export data. The user can easily compare the performance of the batteries tested in channels both visually and statistically.

Protection and Auto-recover

If the power failure occurs during testing, the system will shut down all the operating channels. Once power is recovered, the system will automatically resume those stopped channels and ensure that the test is normally conducted, so that no cases will lose any data.

DCR Testability

The DCR Testing feature enables the Hybrid PulsePower Characterization (HPPC) of the battery. Such function also provides the max/min voltage and current protection.

Temperature Measurement & Battery clips

  • Each channel has an N-type thermocouple to monitor the temperature of the batteries during the charging/discharging cycles. (Pic.1)
  • Temperature range: -20 − 120°C
  • 8 alligator clips pair with thermocouple for pouch cell connection. (Pic.1)
  • 8 alligator clips with thermocouple for coin cell connection. (Pic.2) (Included since 03/20/2016)
     Pic.1           Pic.2
Laptop Computer
  • Brand new laptop with Windows 10 with in-built Excel for data export. (Excel activation is required.)
  • Software is installed and calibrated for immediate use.
  • Up to 20 sets of analyzers can be simultaneously controlled by one PC
  • Notice: We strongly suggest you keep an instant backup of the collected data using an external hard drive.

Compliance

  • CE Certified
  • NRTLor CSA certification is available upon request at an extra cost

Warranty

Two years limited warranty with lifetime support for the battery analyzer. (Note: MTI does not carry a warranty for the laptop. In case service is needed for the laptops, please contact the laptop manufacturer directly for warranty/non-warranty service.)
Operation Manual & Video



 Troubleshooting software on detecting battery analyzer.
Application Notes
  • Multiple battery analyzers with one laptop configuration and purchase possible.
  • Up to 20 battery analyzers can be controlled via one computer & software.
  • Warning: Please in choose NEVER for Screen and Sleep off in Power& Sleep setting of your computer, or it may lose connection from battery analyzer.
Net Weight 30 Kg (65 lbs)
Shipping Weight 37 Kg (80 lbs) / Analyzer only: 70lbs
Shipping Dimensions Analyzer: 33"(L) x 21"(W) x 9"(H)


Standard Package:

Item Description Qty
1 Battery Analyzer + Brand new laptop with MS Window 10 System with Battery Analyzing Software Installed 1 pc
2 Data Transfer Adapter and Cable for connecting the analyzer to USB port on the computer 1 pc
3 Testing Software Installation Disk 1 pc
4 Alligator Clips Pair for Connecting Pouch Cell with Thermocouple 8 pcs
5 Alligator Clip for Connecting Coin Cell with Thermocouple 8 pcs
