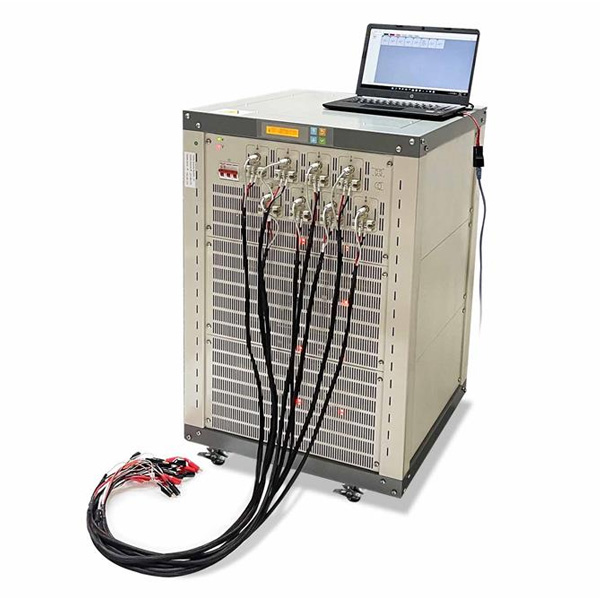

8 Channel Battery Analyzer (10A30V per Channel) with Laptop & Software for R&D Rechargeable Batteries & Electrodes - BST8-10A30V

BST8-10A30V is a CE certified 8 channel battery analyzing the system for Li-ion, LiFePO4, Ni-MH, Ni-Cd, and Lead acid battery packs with up to 30V and 10A per channel. This battery analyzer is designed according to the international standard: each channel has an independent constant-current source and a hardware constant-voltage source. Constant-current source and constant-voltage source can be programmed and controlled by the user. With plug-and-play module design, the user can freely remove and add module units without interrupting other units. A brand new Laptop computer with Windows 10 and operation software is included for immediate use.

SPECIFICATIONS:

Working Voltage	220 - 240V AC, 50/60Hz, Single phase
Max. Power Consumption	3.5KW
Voltage measurement	Range: 0.03 - 30 V Accuracy: +/- (0.1% of reading + 0.05% of range)
Current measurement	Range: 0.01 - 10 A Accuracy: +/- (0.2% of reading + 0.1% of range)
Time Range	0 - 999 seconds
Cycle Measurement Range	1 - 9999 times
Input Impedance	≥ 10 m-ohm
Port	TCP
Channels	Eight independent programmable channels Each channel can set different working modes and works independently
Software	Windows-based software interfaces for easy operation Uses standard SQL database management Real-time monitoring windows and integrated graph/data windows Can set various working modes for measuring capacity and cycle life of all types of rechargeable batteries, such as: Constant current discharge, constant current charge, constant voltage charge, rest, as well as voltage, current, time, capability, negative voltage slope, and other limit conditions The user can define the curve by different types such as voltage-time curve, current-time curve, capacity-voltage curve, loop times charge/discharge capacity curve, loop times charge/ discharge efficiency curve, etc. to make curves be compared both by visually and statistically Provide timely instructions, warnings, and intelligent support
Record	Complete test process record (log function) Intelligent power failure protection: If power fails during the testing, the system will shut down all running channels. Once power recovers, it will automatically resume those stopped channels and ensure that the test is normally conducted and the data will never lose any cases.
Laptop Computer	A brand new laptop with MS Window 10 is included and the latest version testing software are installed and calibrated for immediate use Up to 20 sets of analyzers can be simultaneously controlled by one PC Notice: It is suggested to use an external hard drive to keep an instant backup of the collected data
Product Dimensions	26"(L) x 20"(W) x 20"(H)
Compliance	CE Certified MET or UL certification is available upon request at extra cost
Warranty	One Year limited warranty with lifetime support for the battery analyzer. (Note: MTI does not carry the warranty for the Laptops. In case service is needed for the laptops, please contact the laptop manufacturer directly for warranty/non-warranty service.)
Operation Manual
Application Notes	Please clicks here for safety precautions of operating battery analyzers Warning: Please choose NEVER for Screen and Sleep off in Power& Sleep setting of your computer, or it may lose connection from the battery analyzer.
Net Weight	90 kg (200 lbs)
