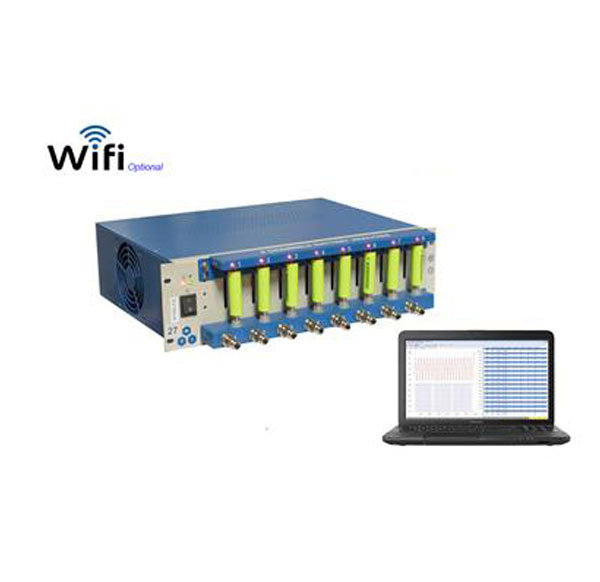

8 Channel Battery Analyzer (6-3000 mA, up to 5V) w/ Cell Holder, Laptop Software & Optional WIFI Control - BST8-3

8 Channel Battery Analyzer (6-3000 mA, up to 5V) w/ Cell Holder, Laptop Software & Optional WIFI Control - BST8-3

0.0/5 rating (0 votes)

Description

BST8-3 is an eight-channel battery analyzer to analyze small coin cells and cylindrical batteries from 6.0 mA to 3000 mA, up to 5V, with gold-plated pins for the best connection. Each channel of the analyzer has independent constant-current and constant-voltage source, which can be programmed and controlled by computer software. This system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing and etc. The purchase comes with a brand new laptop with Microsoft Windows 10 with 30 days free trial Microsoft Excel and the latest version of controller software installed and calibrated for immediate use. (Up to 20 sets of analyzers can be simultaneously controlled by one PC).

SPECIFICATIONS:

Electricity requirement

110V AC or 220V AC selectable for universal use

Power Consumption

200W

Current

  • Range: 6.0mA – 3000mA
  • Accuracy: ±(0.05% of reading + 0.1% of range)

Voltage

  • Range: 0.5 - 5V programmable
  • Accuracy: ±(0.05% of reading + 0.1% of range)

Data register conditions

Time interval: 1 - 900s

Max. measurement cycles

9999 cycles

Product Dimensions

  445mm(L) x 380mm(D) x 135mm(H)

Channels

  • Eight independent programmable channels
  • Each channel can set different working modes and functions independently

Programs & Software

  • The software (TC5.3) with calibration function is included to set various working modes for measuring capacity and lifecycle for all types of rechargeable batteries
  • Working modes Include constant current discharge, constant current charge, constant voltage charge, constant resistance discharge, rest, cycles, etc.
  • Limited threshold conditions include voltage, current, time, capacity, negative voltage slope, etc.
  • With real-time monitoring windows and integrated graph/data windows, the testing process can be observed more directly and efficiently
  • During the test, the software will provide instructions and warnings for assistance
  • The calibration software can be used to calibrate the analyzer
  • MS Excel 2013 30 days free trial is pre-installed for you to output the Excel data file. (Note: Updated information on 5/21/2015)

Test Reports and Curves for analysis

  • Different types of curves can be created by software base on user definition. (Voltage-time curve, current-time curve, capacity-voltage curve, loops times charge/discharge capacity curve, loops times charge/ discharge efficiency curve, etc)
  • Data reports are created by the software. User can easily compare the performance of the batteries tested in channels both visually and statistically

Protection and Auto-recover

If the power failure occurs during testing, the system will shut down all operating channels. Once power is recovered, the system will automatically resume those stopped channels and ensure that the test is normally conducted, so that no cases will lose any data.

Battery Holders

  • Two types of battery holders are included in the BST8-3 Standard package:
    • 8 Gold Plated spring load holders with adjustable height for measuring cylinder or coin cell up to 70mm(H) (pls click a picture below  1-2 to enlarge)
    • 8 alligator clips with cable for universal connecting (especially for pouch cell, pls click the picture 3-4 below  )
  • Optional holder: 8-Channel coin cell testing board for measuring coin cells easily  (click Pic 5 to order )
  •
Laptop Computer

         &
WIFI Option

  • Brand new laptop ( 4GB RAM 128GB SSD) with MS Window 10and the latest version testing software is installed and calibrated for immediate use.
  • Notice: It is suggested to use an external hard drive to keep an instant backup of the collected data.
  • Upgrade the battery tester with a remote wireless control which provides upto 50 meters operating range in an open area. Such a great feature is available upon request at the extra cost  ( add $195 ).


Compliance

  • CE Certified
  • MET, TUV, CSA, UL certification are available upon request at extra cost
  • Caiibration Certificate by MTI is available at extra cost.

Warranty

Two Year limited warranty with lifetime support for the battery analyzer. (Note: MTI does not carry a warranty for the Laptops. In case service is needed for the laptops, please contact laptop manufacturer directly for warranty/non-warranty service.)
Operation Manual & Video

Application Notes
  • New buyers must buy the software installed laptop to avoid trouble from installation. If you like to run multiple battery analyzers on one Laptop, you can just buy multiple analyzers with one laptop which are offered at a discounted price.
  • Warning: Please in choose NEVER for Screen and Sleep off in Power& Sleep setting of your computer, or it may lose connection from battery analyzer.
  • The customer can easily combine up to 20 battery analyzers (0.002-1mA, 0.1-10mA, 6mA-3000mA) by using normal Ethernet cable connector via one computer.
  • You may order MTI's movable rack to organize the battery analyzers (click the first picture below for more information)
  • You may order internal resistance tester to measure DC resistivity (click the second and third picture below for more information)

Net Weight 11.5 kg (26 lbs)
Shipping Weight 18 kg (40 lbs) / Analyzer only: 25lbs
Shipping Dimensions 610mm(H) x 510mm(W) x 356mm(H) (24" x 20" x 14")



Standard Package:

Item Description Qty
1 Battery analyzer + Brand new laptop with MS Window 10 system and battery analyzer operation software installed 1 pc
2 RS232-to-USB Adapter for connecting the analyzer to the USB port on the computer 1 pc
3 Test-Control software 5.3 Installation Disk 1 pc
4 Alligator Clips for connecting a battery 8 pc



OPTIONAL:

Item Description Qty
1    Connection Cables for MTI Battery Analyzers - EQ-BACC-8B Optional
2

   Optional Connector/Adaptor is available upon request.
1, Alligator Clips 2, Kelvin wires connector 3, JST connector
